DHTMLGoodies.com 00. This Slideshow illustrates the JM1065 Instructions pages 8 - 10
../../../RGT_Website_assets/ajax-loader.gif
DHTMLGoodies.com
01. The Foundation is assembled (link for Foundation Assembly is at left)
DHTMLGoodies.com
02. The line for the left side of the stair position will become usedful
DHTMLGoodies.com
04. View from the back: Base Floor, lined up on the back and left edges
DHTMLGoodies.com
05. Adjust the Foundation as necessary to make it line up
DHTMLGoodies.com
07. Page 9: The Gable Left Side glues behind the Gable Front
DHTMLGoodies.com
08. Lined up top, bottom, on the edge, and at the grooves
DHTMLGoodies.com
16. The outside face lines up with the stairhole tracing
DHTMLGoodies.com
17. The Lower Right Front glues to the face of the Gable Right Side
DHTMLGoodies.com
20. The Lower Right Side glues to the right edge of the Lower Right Front
DHTMLGoodies.com
21. Clean the Mid Floor and grooves (see "Scrape" at left)
DHTMLGoodies.com
24. Lift so the wall's glue doesn't smear while inserting into the grooves
DHTMLGoodies.com
26. Lined up in back, straighten and support with Dividers
DHTMLGoodies.com
38. the Top Floor lines up with the outsides of the walls
DHTMLGoodies.com

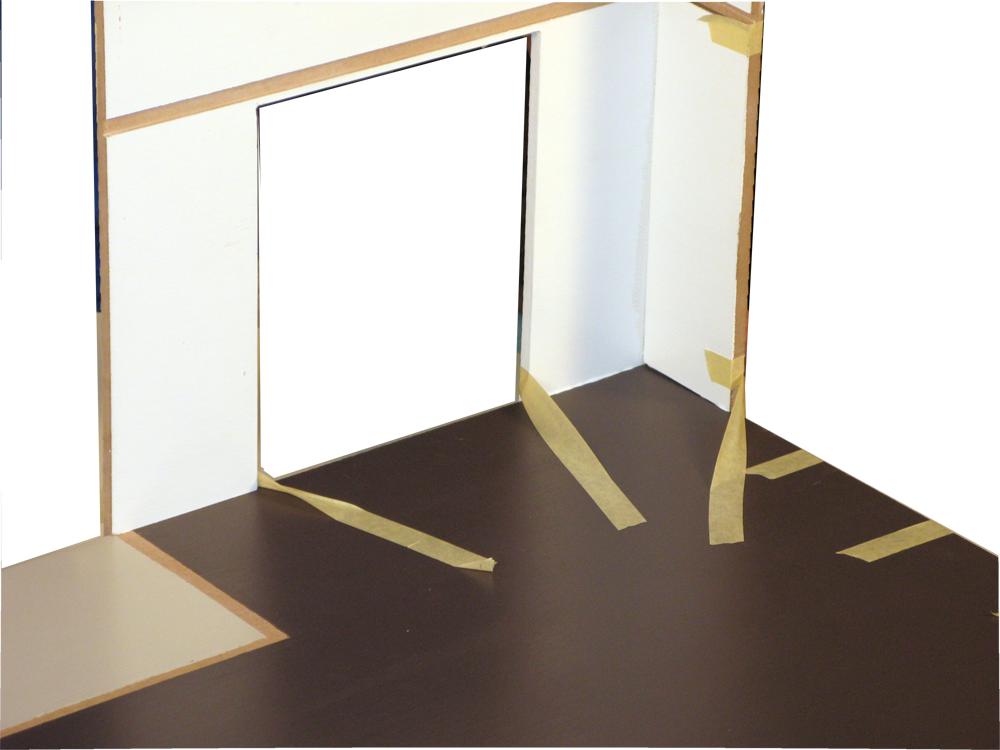

43. Tape tightly in both directions for a corner that won't slip
DHTMLGoodies.com
44. Recheck all the corners, adjust if necessary, tape in both directions
|
