This is the Layout I will use on the Collectibles Cabinet:
CC14/CutStairHole/CutStairHole-00-lg.png
This is the Layout I will use on the Collectibles Cabinet:
CC14/CutStairHole/CutStairHole-00-lg.png

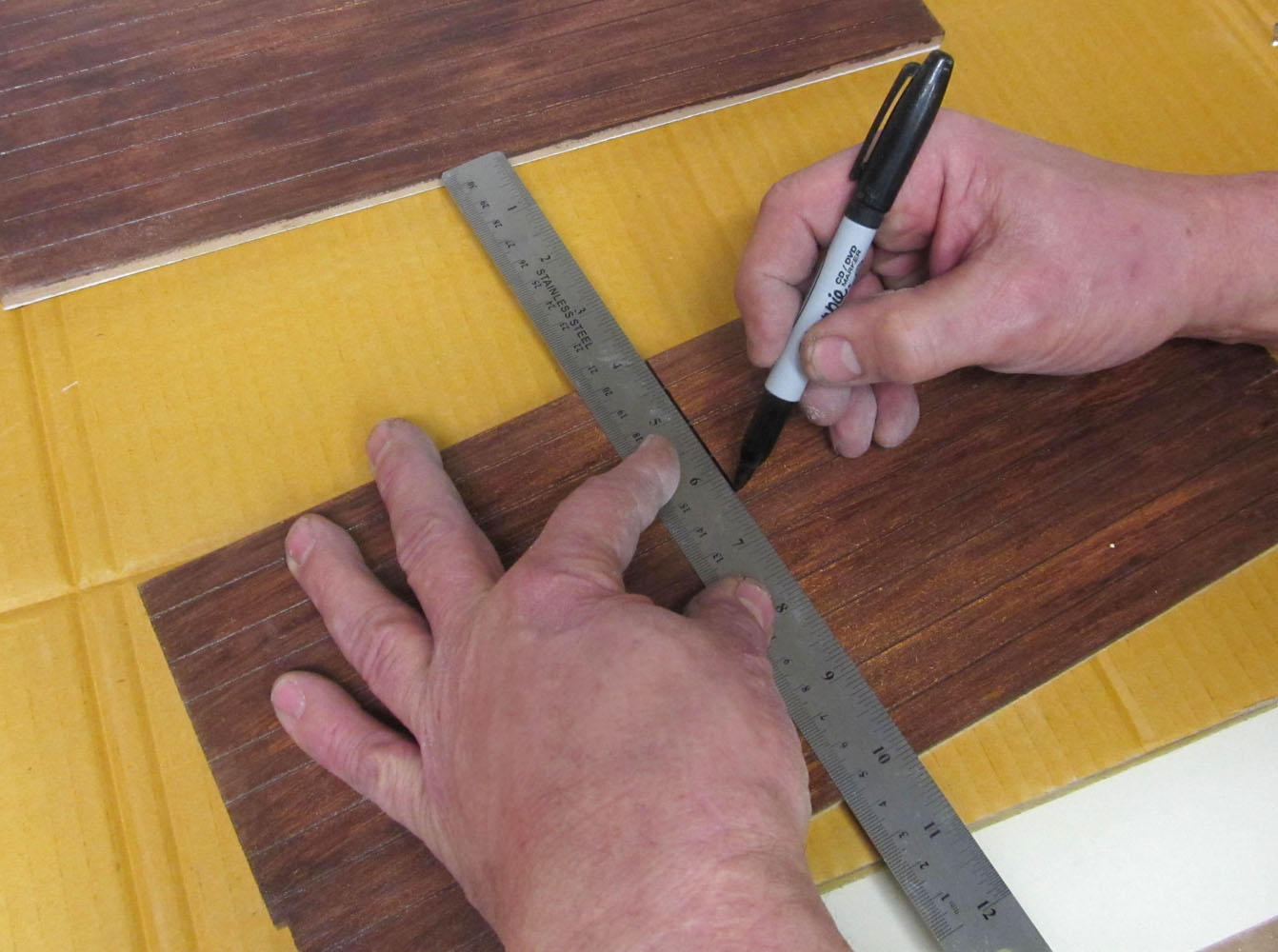

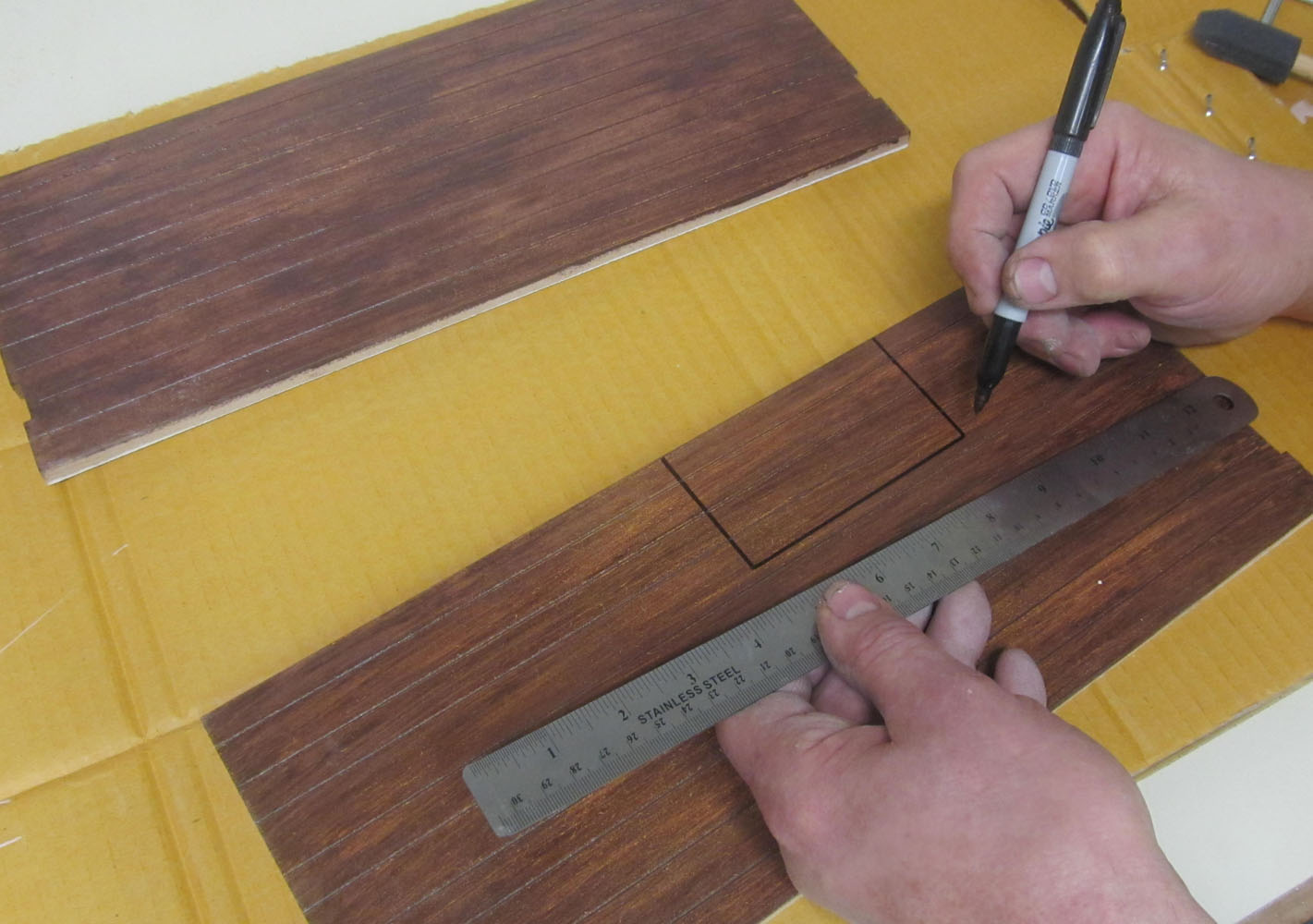

I will be installing a cut-down 4017 Stairset
CC14/CutStairHole/CutStairHole-02-lg.jpg

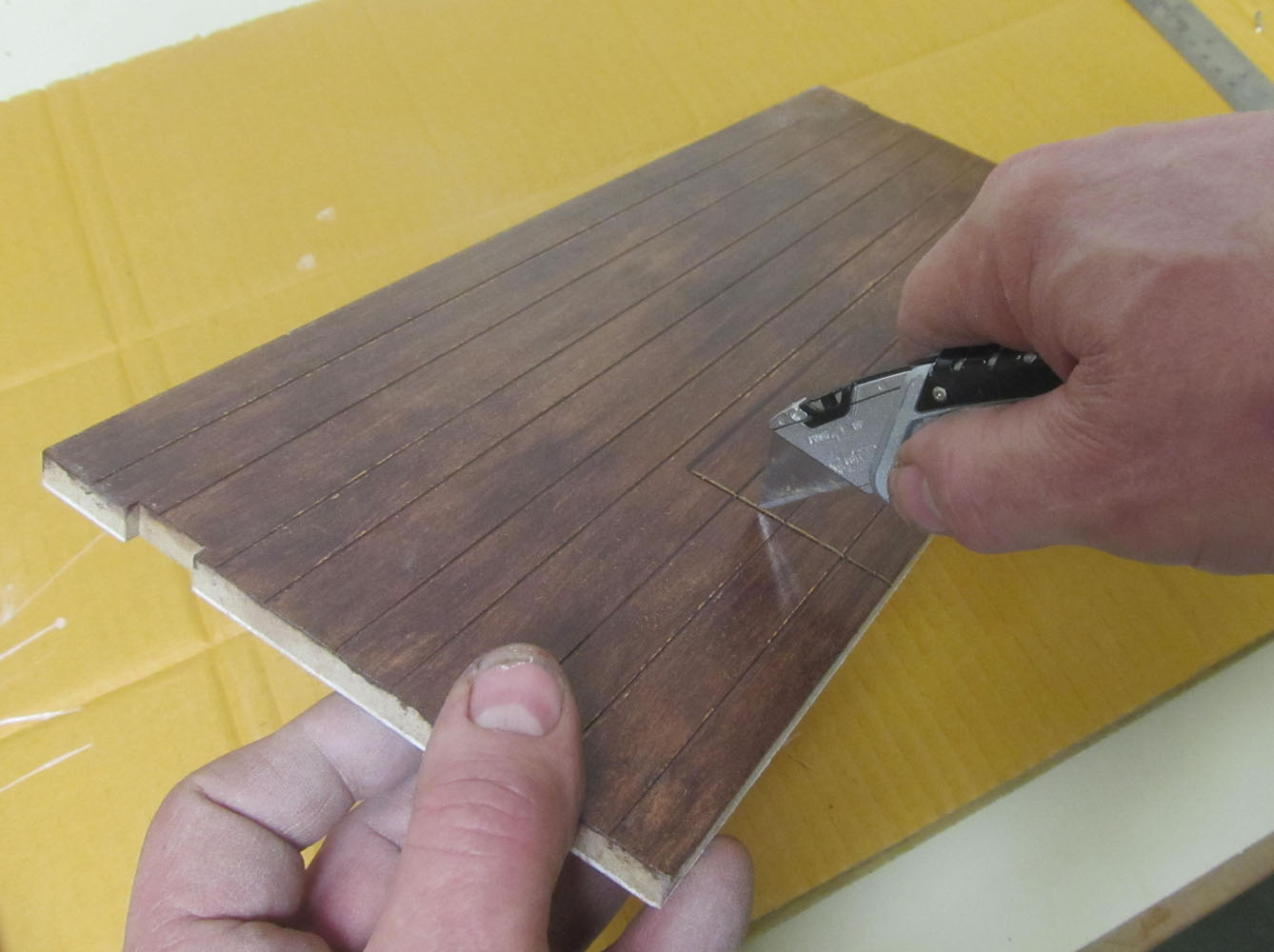

A "straight" cut: the blade is straight up-and-down
CC14/CutStairHole/CutStairHole-04-lg.jpg

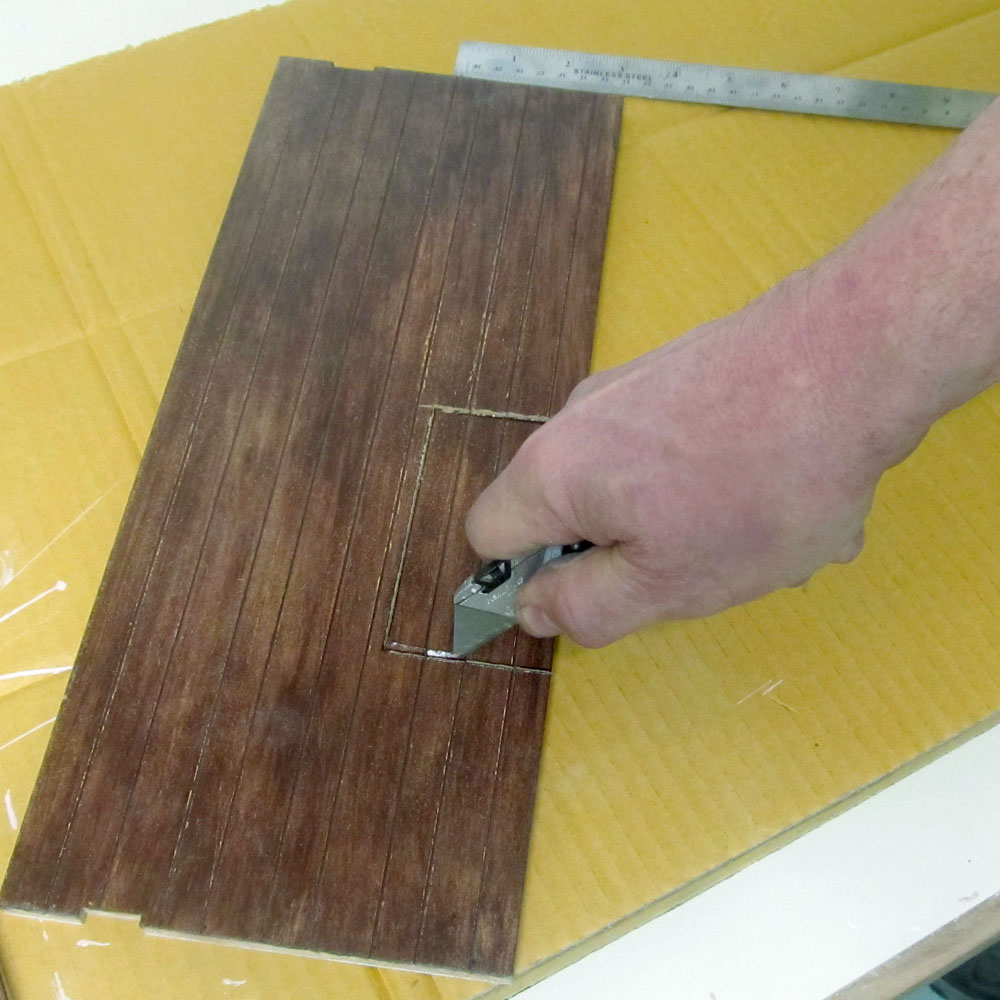

Once the cut is deep, the wood will drag on the blade
CC14/CutStairHole/CutStairHole-06-lg.jpg

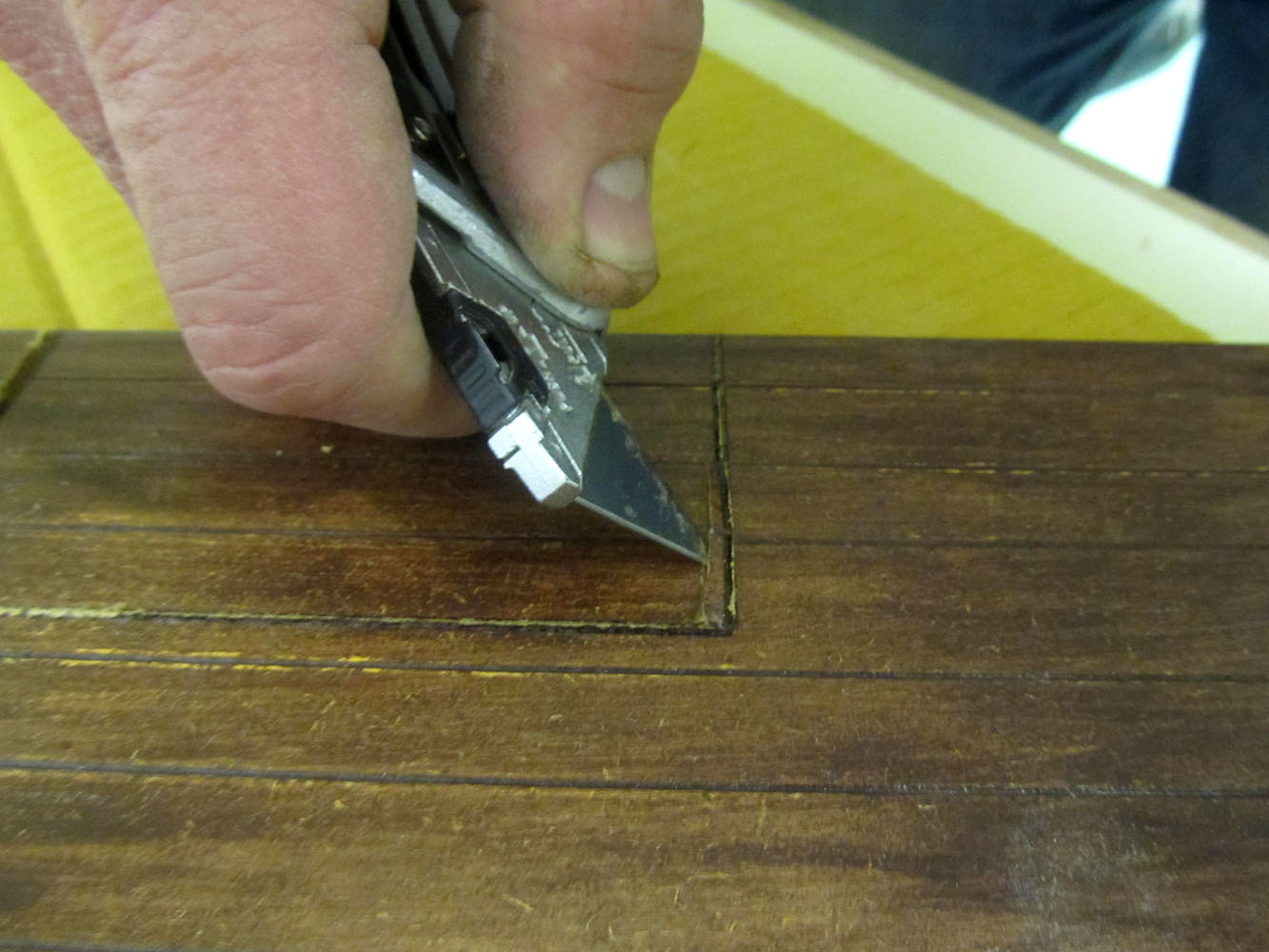

... then a "clearing cut" will lift out waste material
CC14/CutStairHole/CutStairHole-07-lg.jpg

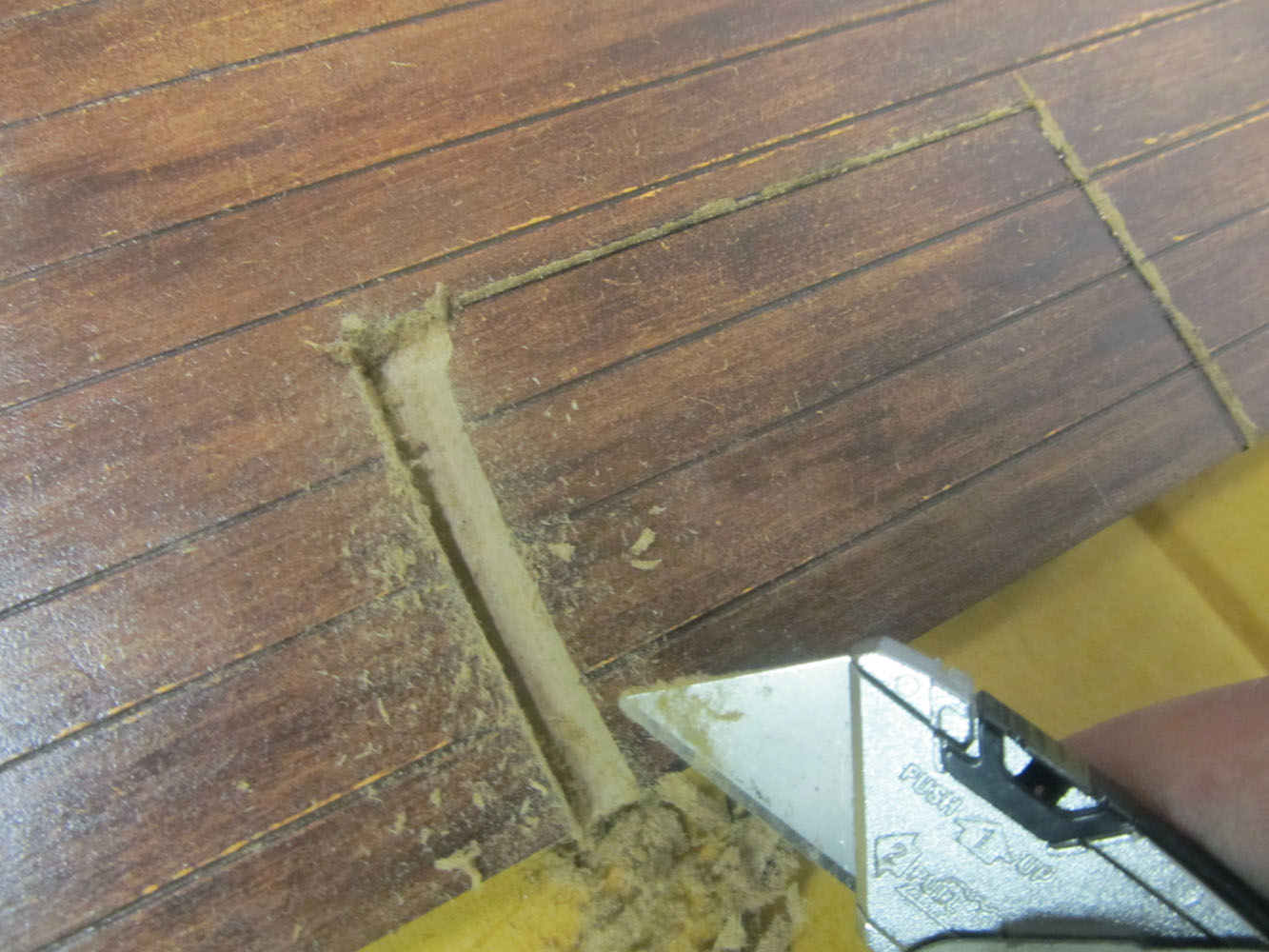

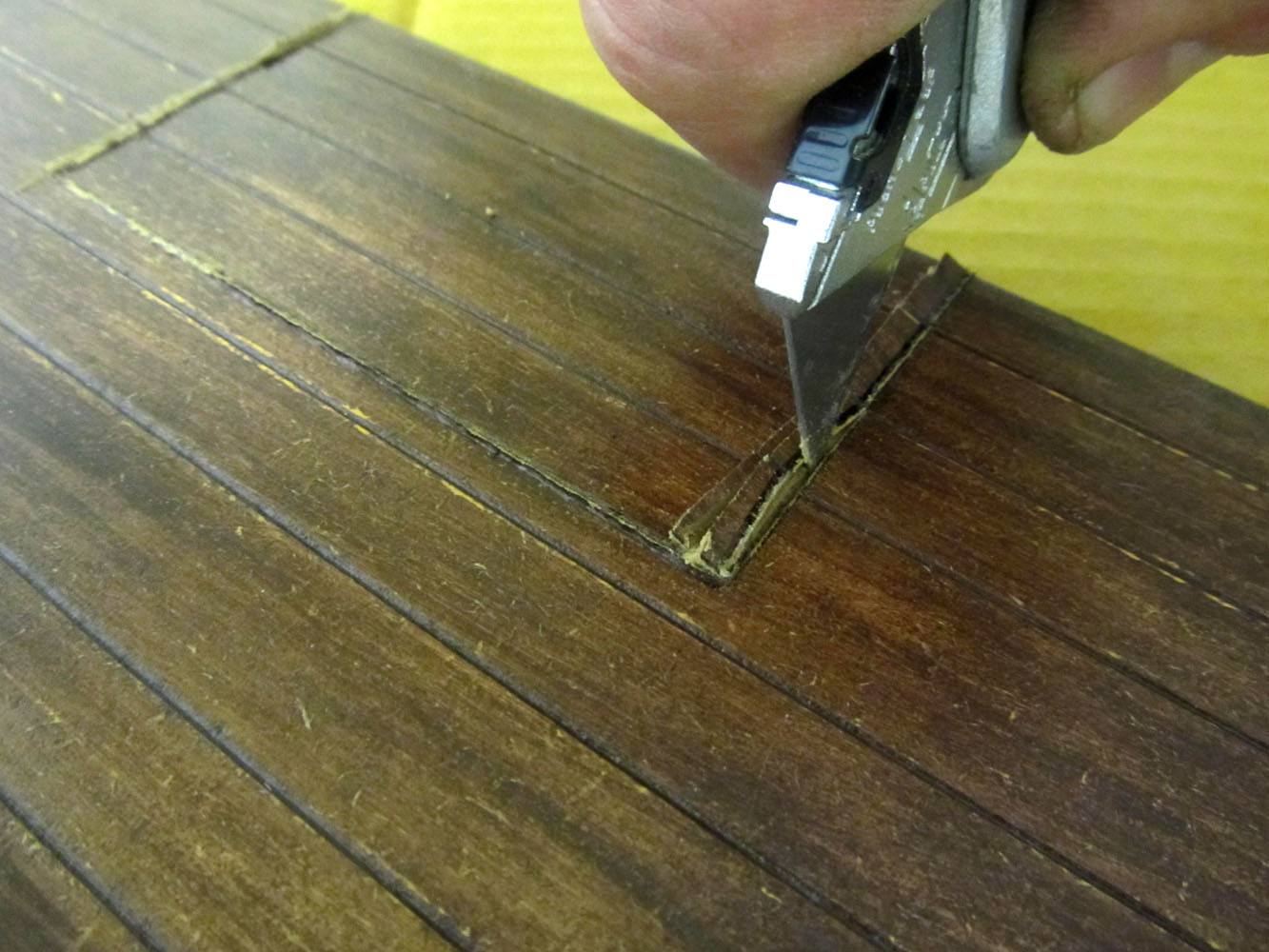

Clearing cuts... straight cuts... back and forth
CC14/CutStairHole/CutStairHole-08-lg.jpg

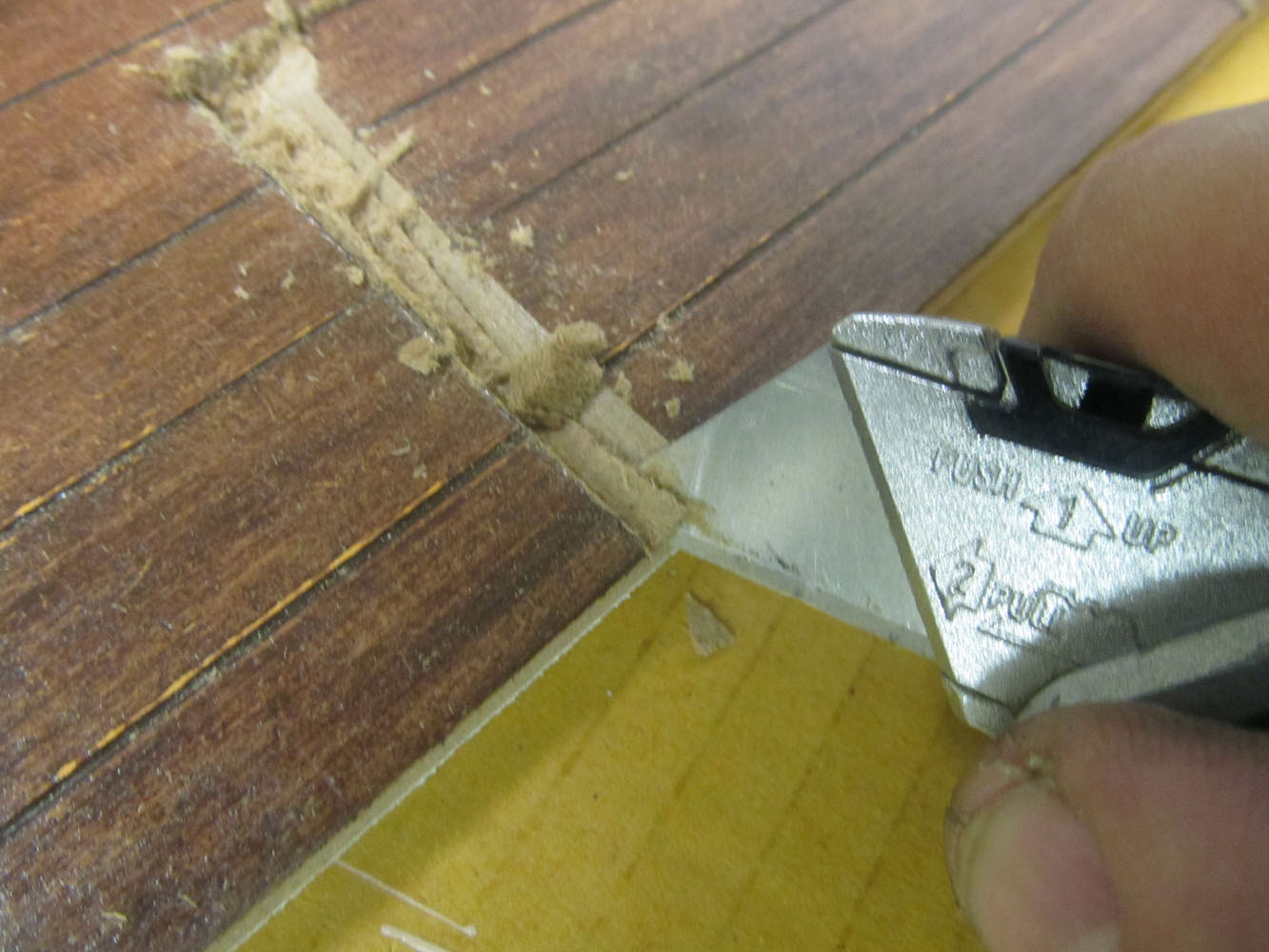

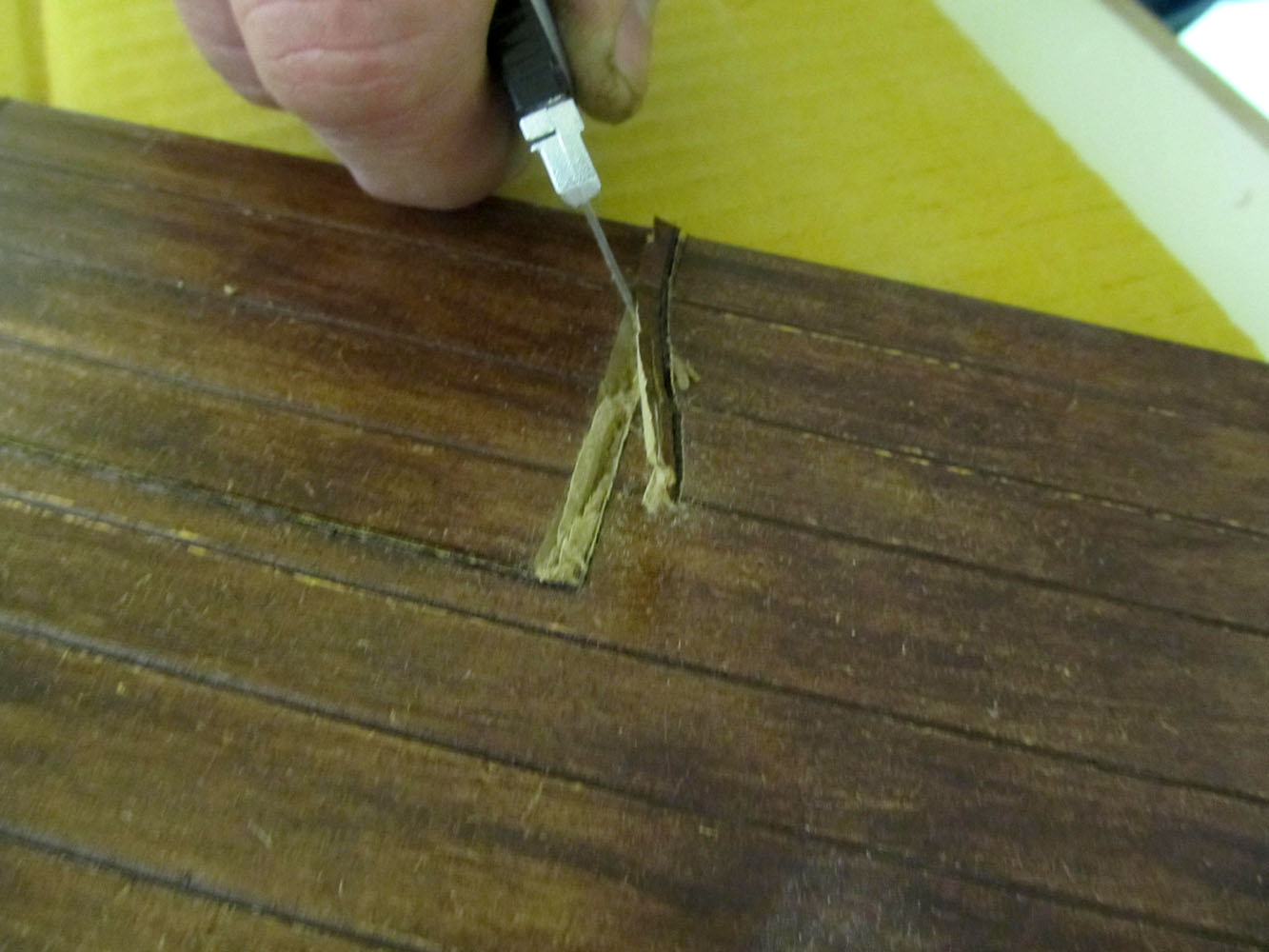

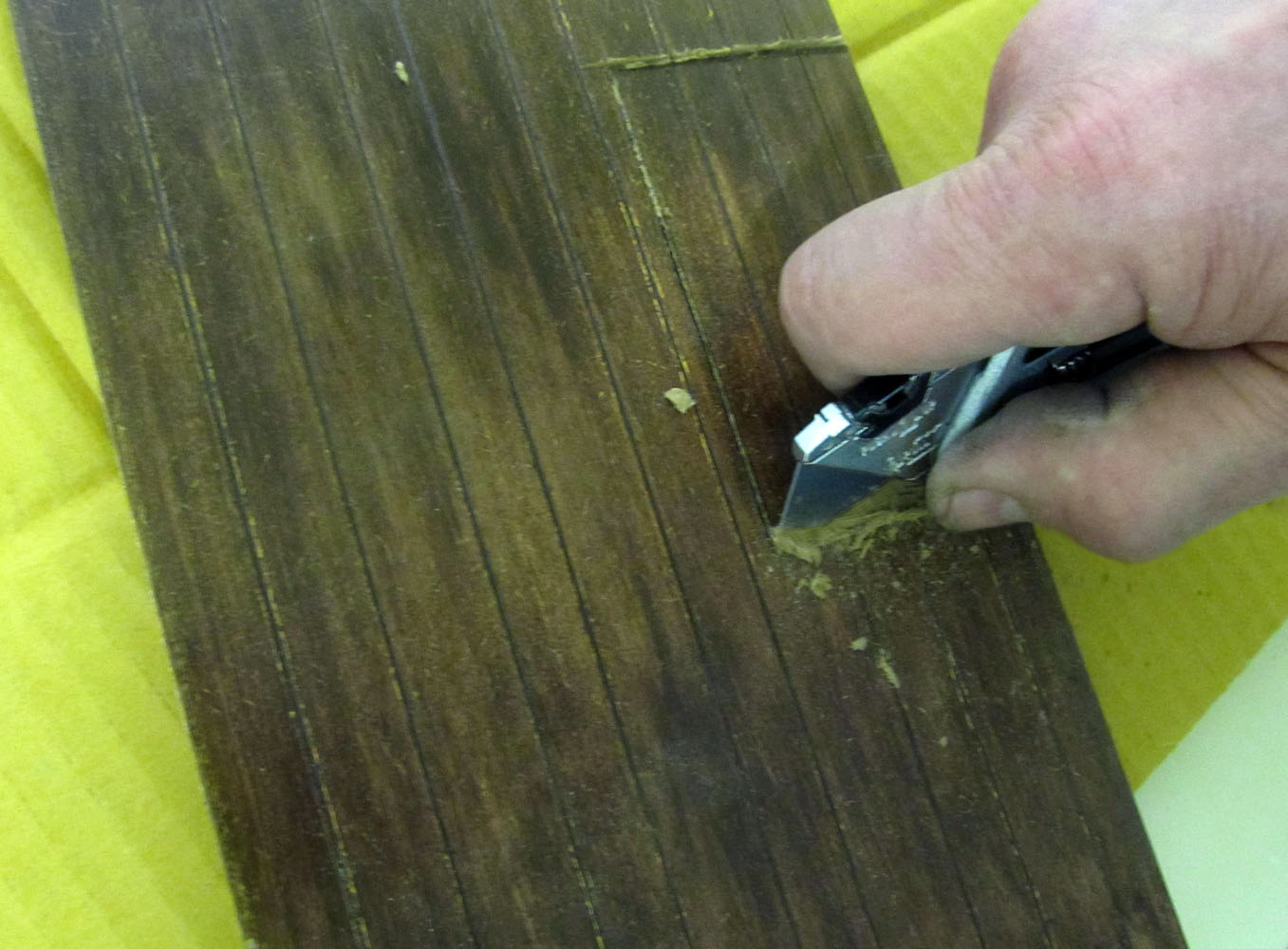

The Clearing Cut removes the material that drags on the blade
CC14/CutStairHole/CutStairHole-09-lg.jpg

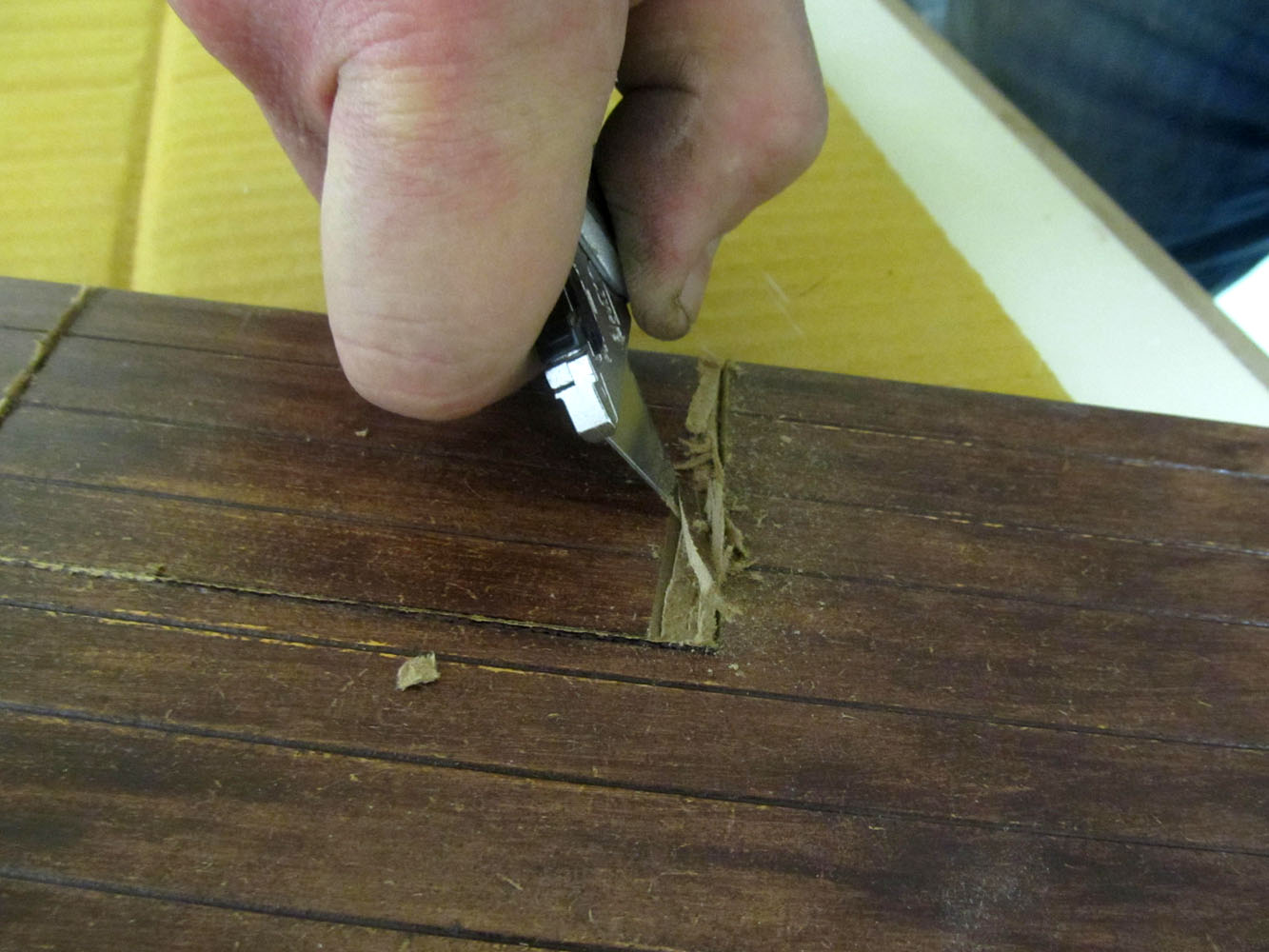

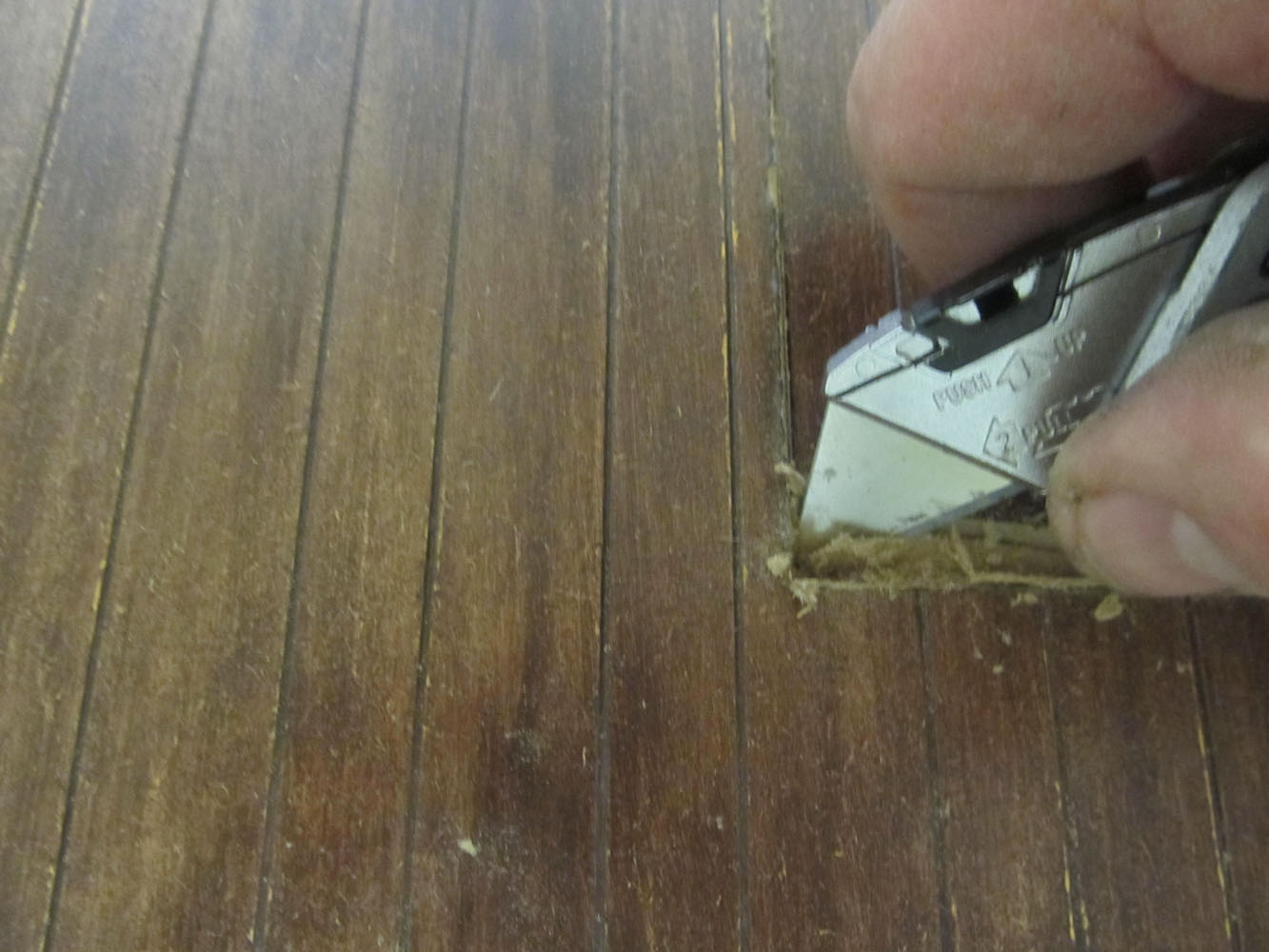

As you go deeper, the clearing cuts are wider
CC14/CutStairHole/CutStairHole-10-lg.jpg

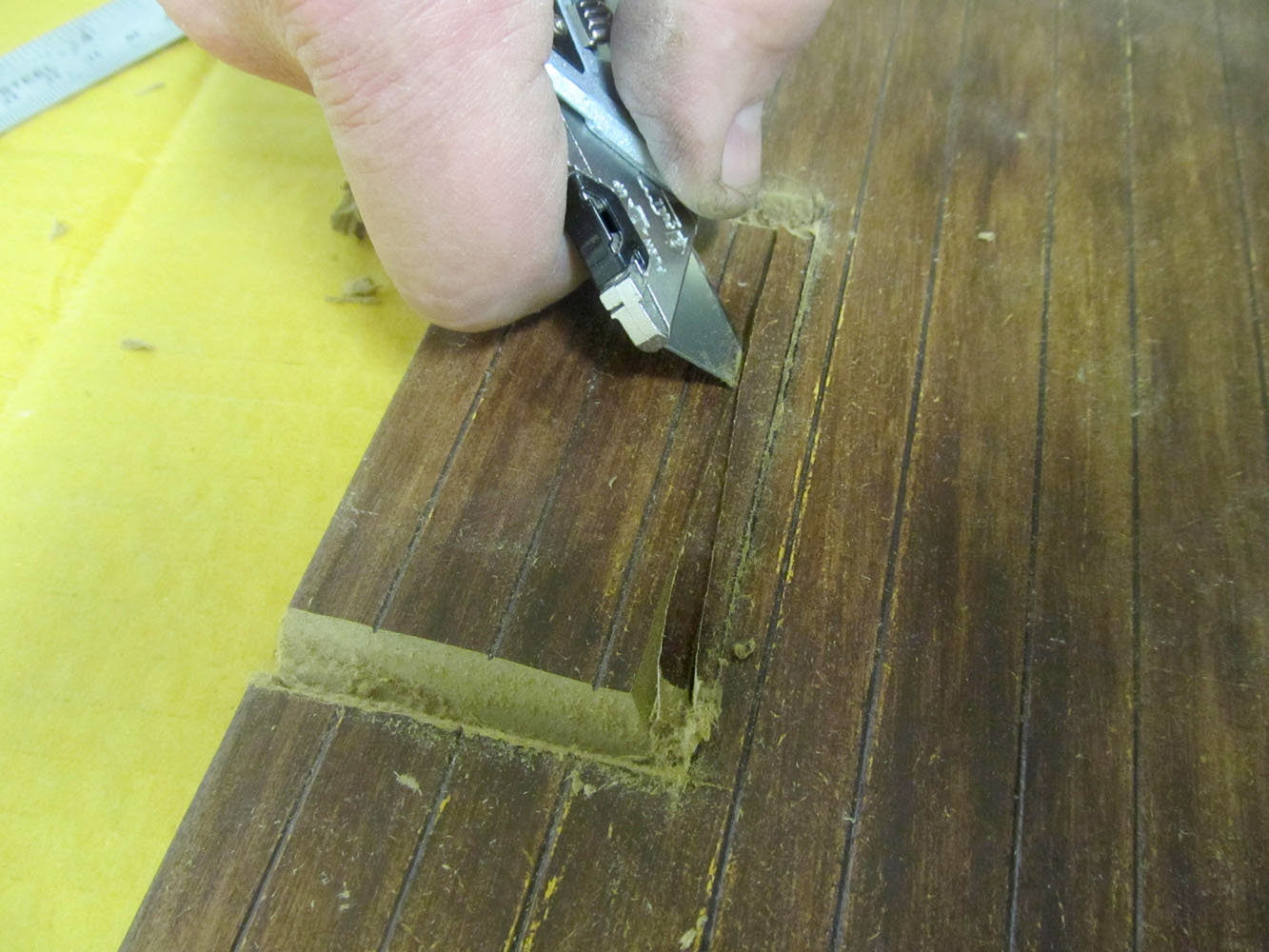

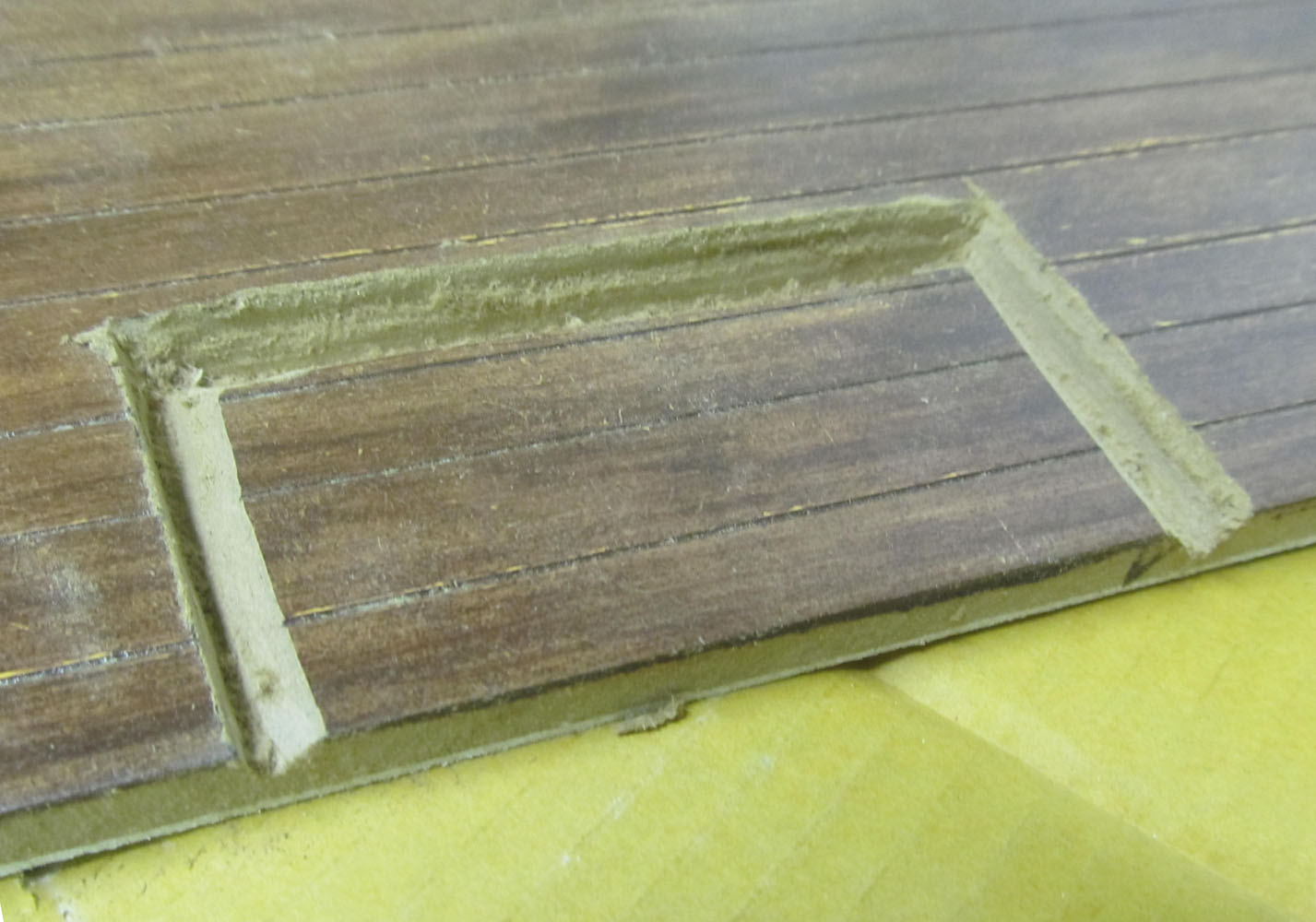

Approach the underside more-or-less evenly
CC14/CutStairHole/CutStairHole-16-lg.jpg

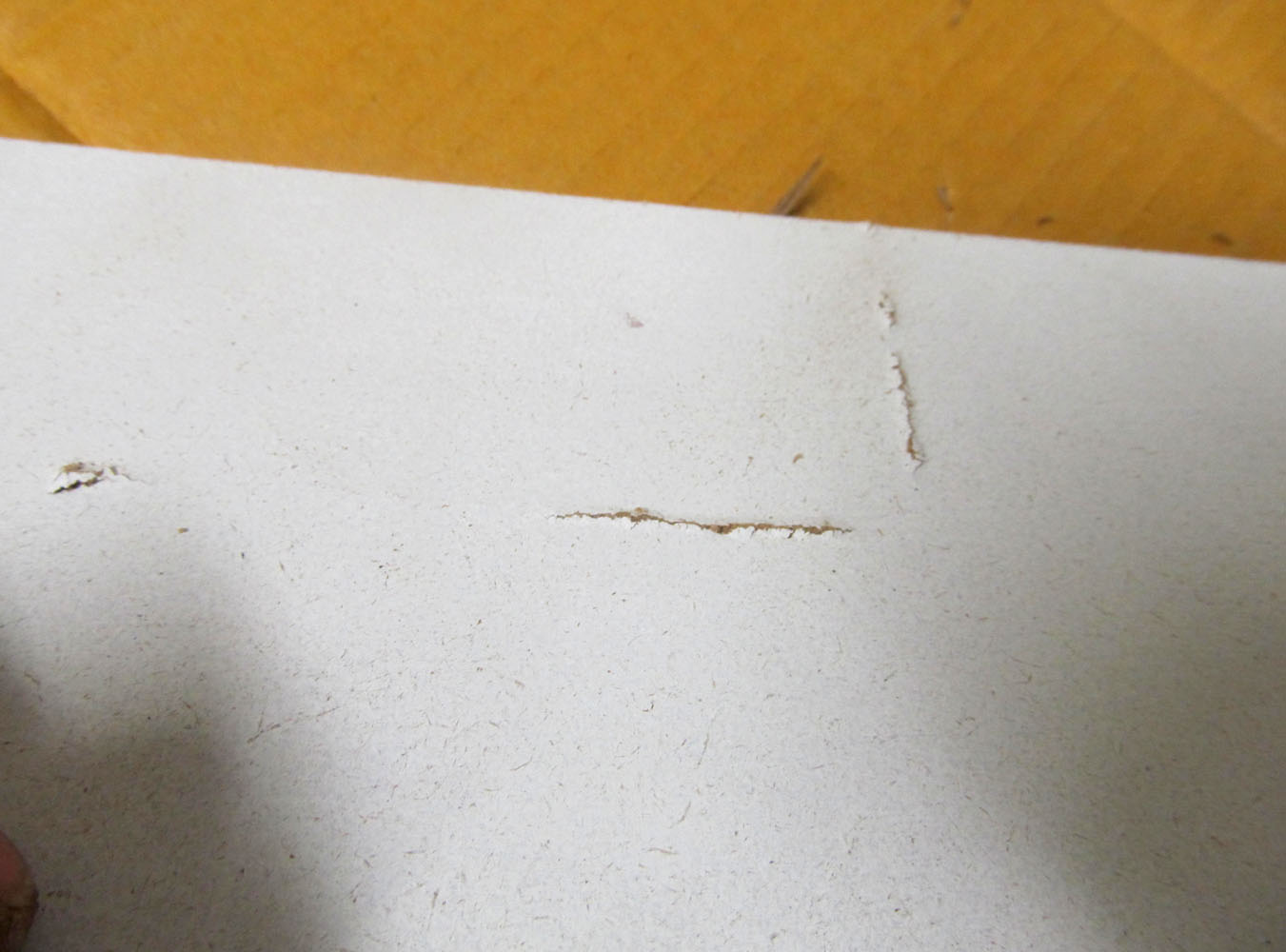

Take it gentle as you cut thru... don't break the ceiling
CC14/CutStairHole/CutStairHole-17-lg.jpg

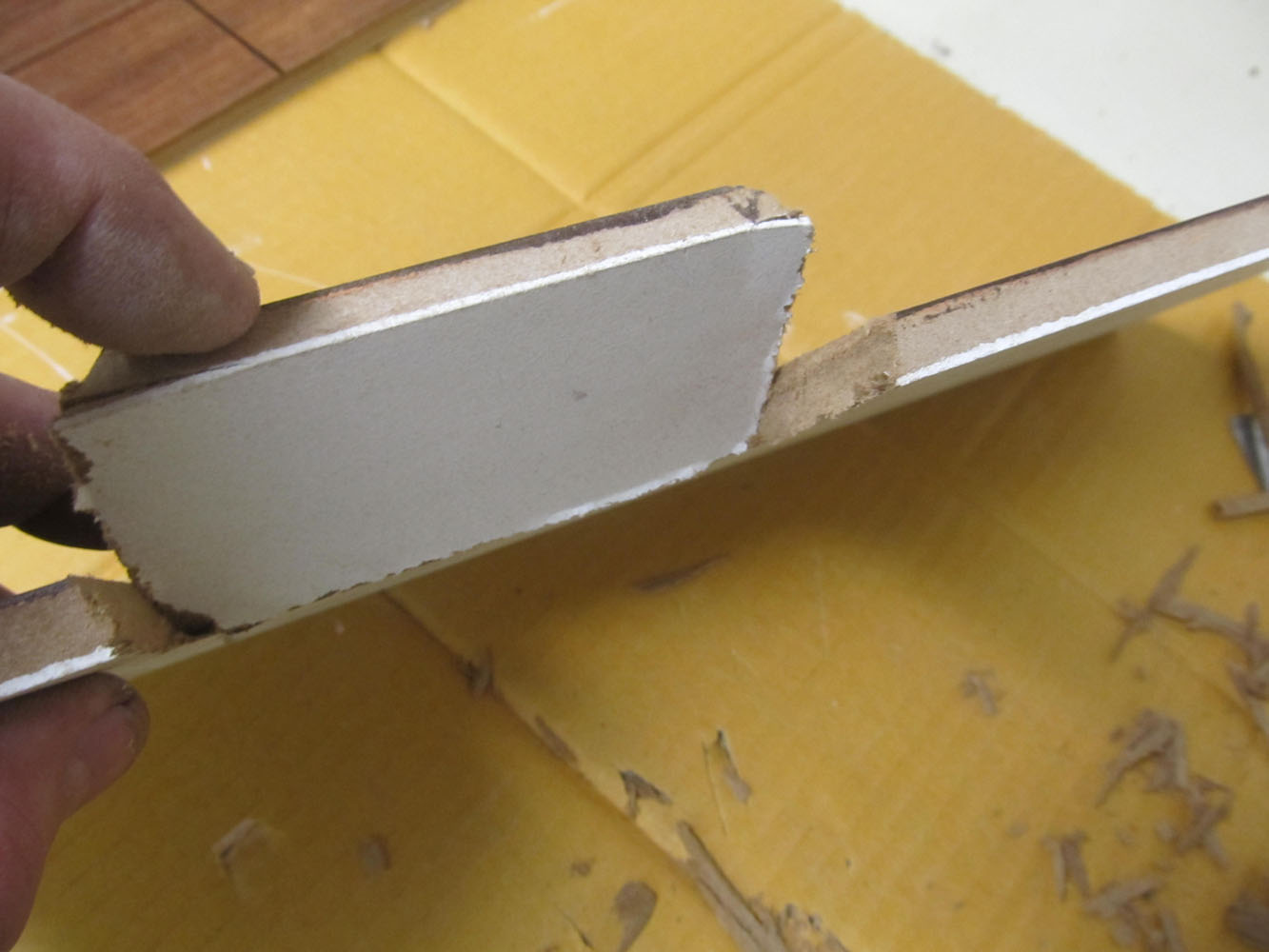

Push the cutout upward to avoid tearing the ceiling
CC14/CutStairHole/CutStairHole-18-lg.jpg

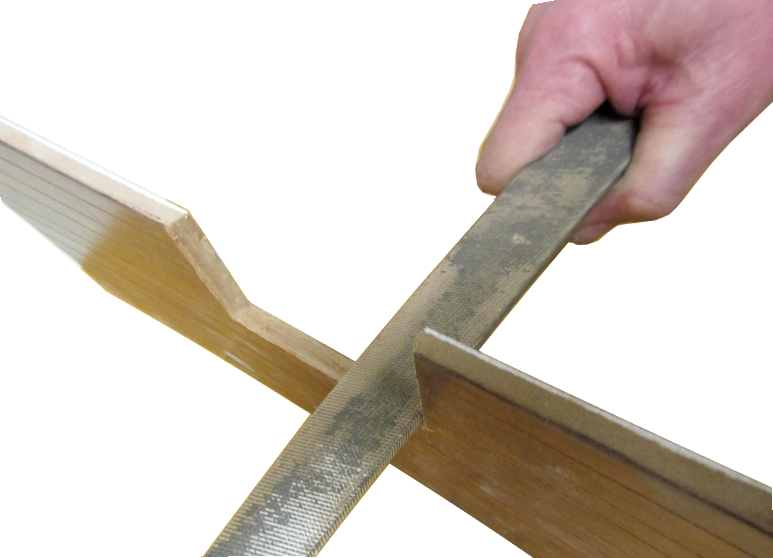

A Double-Cut Coarse file is great for shaping
CC14/CutStairHole/CutStairHole-20-lg.png

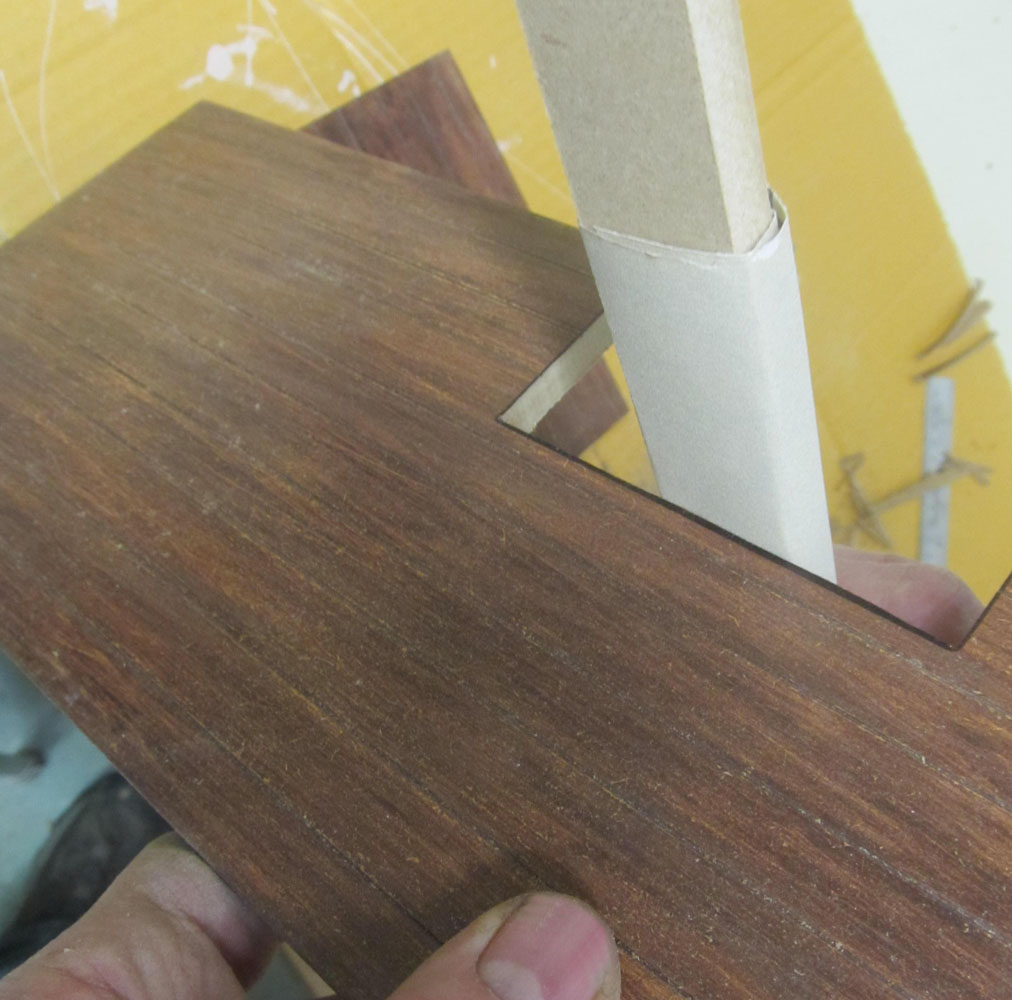

Sandpaper wrapped on a stick for smoothing
CC14/CutStairHole/CutStairHole-21-lg.jpg
