Dollhouse Wiring Tester repair

CK204 Testprobe Repair

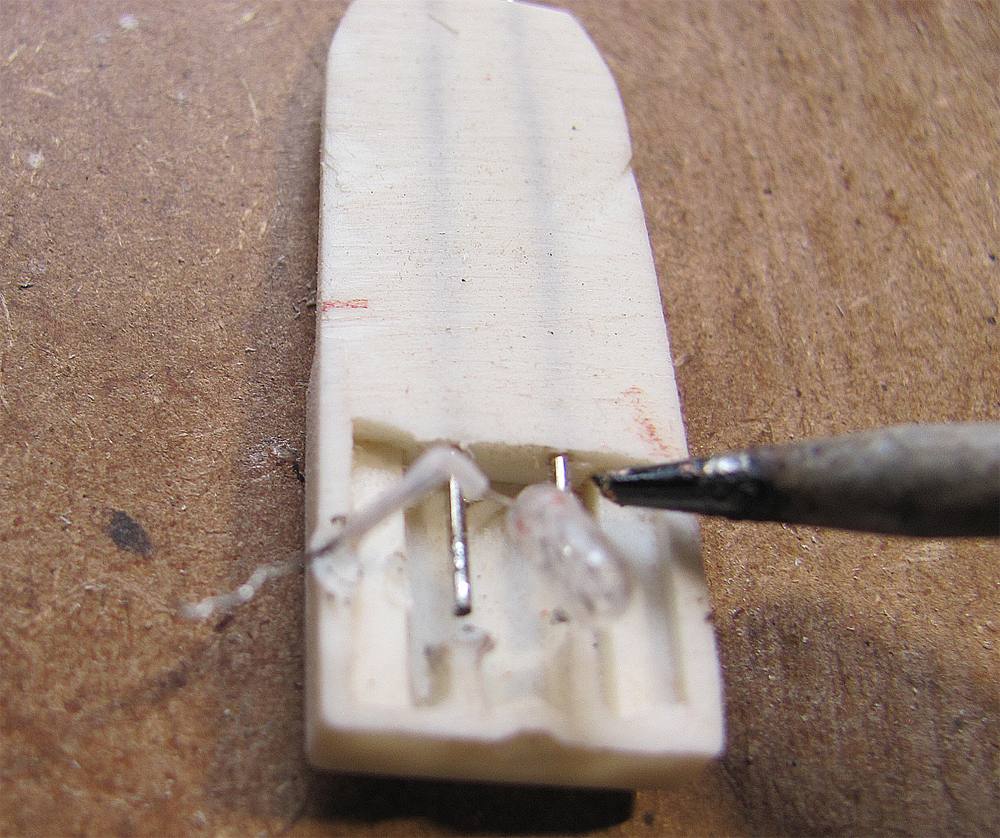

GOR bulb Make an LED Testprobe	DHTMLGoodies.com 00. ../../RGT_Website_assets/ajax-loader.gif DHTMLGoodies.com 01. this tester has stopped working 01D.png DHTMLGoodies.com 02. Checking it with a 12v power supply 02D.png DHTMLGoodies.com 03. Checking the power supply with my home made tester 03D.png DHTMLGoodies.com 04. A bright light shows a pocket for the lightbulb in the head (on the left) 04D.png DHTMLGoodies.com 05. This is an abrasive cutter on a rotary tool (this one is a Dremel) 05D.png DHTMLGoodies.com 06. cutting all the way around the head 06D.png DHTMLGoodies.com 07. Cutting in line with surface of the wide part of the stem 07D.png DHTMLGoodies.com 08. I did not need to cut here and wouldn't again 08D.png DHTMLGoodies.com 09. the pocket with the bulb 09D.png DHTMLGoodies.com 10. The blub is soldered to the pins 10D.png DHTMLGoodies.com 11. Heating the solder and sliding the wires off the top 11D.png DHTMLGoodies.com 12. first one side then the other 12D.png DHTMLGoodies.com 13. avoid the plastic with the soldering iron 13D.png DHTMLGoodies.com 14. GOR bulb ("Grain of Rice") 14D.png DHTMLGoodies.com 15. it fits with room to wrap the wires around the pins 15D.png DHTMLGoodies.com 16. wrapping the wires around the pins (no insulation is on the wires) 16D.png DHTMLGoodies.com 17. Soldering the wire to the pin - both sides 17D.png DHTMLGoodies.com 18. Test... It works! Trim off excess wire 18D.png DHTMLGoodies.com 19. Silicone glue 19D.png DHTMLGoodies.com 20. Glue the cover back on 20D.png DHTMLGoodies.com 21. Success. 21D.png
