LEDs on an E215 Backer

"Light-It-Up" LED fixtures:
  E224 Box Light
  E225 Recessed Light
  E226 Valence Light

Parts in this slideshow:
  ExtraBright LED
  Tapewire
  E215 Light Backer
  E239 Connectors (8mm)
  EL66 Eyelet Tool
  CK1023-40 Small Hollow Eyelets
  Wire 20 - 24 Gauge

Other ways to connect LEDs:
E215 Striplight with a E239 Connector

Eyelet to installed tapewire

"Daisy-Chain" with Roundwire

Parallel (side-by-side)

E215: Wiring a Roombox for a Valence Striplight

DHTMLGoodies.com

00 Using a E215 Backer with LEDs ../../RGT_Website_assets/ajax-loader.gif

DHTMLGoodies.com

01. A E215 Backer and Tapewire 01D.png

DHTMLGoodies.com

02. If your application is tapewire-to-tapewire, cut the tapewire long 02D.png

DHTMLGoodies.com

03. If you're wiring with roundwire, cut the tapewire to fit 03D.png

DHTMLGoodies.com

04. A E239 connector - see the "Daisy-chain" photo at left 04D.png

DHTMLGoodies.com

05. Peal back the adhesive protective backer on the tapewire 05D.png

DHTMLGoodies.com

06. Stick the tapewire to the backer 06D.png

DHTMLGoodies.com

07. leave flaps if wiring to tapewire 07D.png

DHTMLGoodies.com

08. This 13" room will have 5 segments spread evenly 08D.png

DHTMLGoodies.com

09. Test the LEDs to confirm it's the color you want 09D.png

DHTMLGoodies.com

10. This is 8mm striplight - I am marking "p" for "pure white" 10D.png

DHTMLGoodies.com

11. This is 10mm striplight, they are both compatible with mounting on tapewire 11D.png

DHTMLGoodies.com

12. I will stick a segment centered on each mark 12D.png

DHTMLGoodies.com

13. Peal off the backer 13D.png

DHTMLGoodies.com

14. IMPORTANT! the "+" is on the copper and the "-" is over the blue 14D.png

DHTMLGoodies.com

15. Small Hollow Eyelet on an Eyelet Tool 15D.png

DHTMLGoodies.com

16. Eyeletting the striplight to the tapewire 16D.png

DHTMLGoodies.com

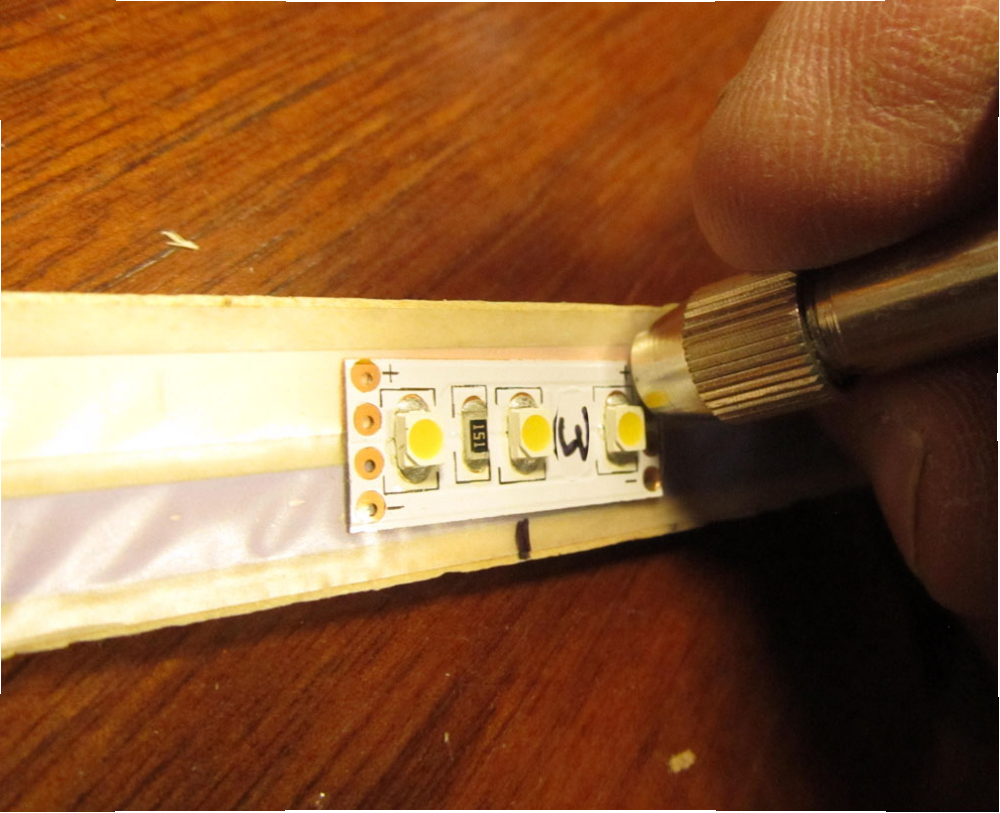

17. Don't bump the emitter 17D.png

DHTMLGoodies.com

18. The copper targets are where a connection can be made (use the outer ones on 10mm striplights) 18D.png

DHTMLGoodies.com

19. Eyeletted into the conductors of the tapewire 19D.png

DHTMLGoodies.com

20. One "+" and one "-" for each segment is usually sufficient 20D.png

DHTMLGoodies.com

21. the next 9 slides will be for hooking to roundwire 21D.png

DHTMLGoodies.com

22. I run "+" through the striped or the red wire on roundwire 22D.png

DHTMLGoodies.com

23. Preparing for a double eyelet connection for each conductor 23D.png

DHTMLGoodies.com

24. Two holes in each conductor of the tapewire 24D.png

DHTMLGoodies.com

25. Each wire goes into the tapewire twice 25D.png

DHTMLGoodies.com

26. Eyelet alongside the roundwire in each hole 26D.png

DHTMLGoodies.com

27. Small hollow eyelets 27D.png

DHTMLGoodies.com

28. "+" to copper, "-" to blue 28D.png

DHTMLGoodies.com

29. Test 29D.png

DHTMLGoodies.com

30. One segment needed an extra eyelet for full contact 30D.png

DHTMLGoodies.com

31. 8mm striplights fit just as well 31D.png

DHTMLGoodies.com

32. In this application I will nail the Backer to a valence 32D.png

DHTMLGoodies.com

35. Don't nail thru the striplight segments 35D.png

DHTMLGoodies.com

33. Here I am using double-sided tape 33D.png

DHTMLGoodies.com

34. I will cover this with 1" stripwood later 34D.png

DHTMLGoodies.com

36. Whether the house is wired with tapewire 36D.png

DHTMLGoodies.com

37. ... or roundwire 37D.png

DHTMLGoodies.com

38. Use the appropriate connection method.. 38D.png

DHTMLGoodies.com

39. .. taking care to keep "+" to "+" and "-" to "-" 39D.png

DHTMLGoodies.com

40. 40D.png

DHTMLGoodies.com

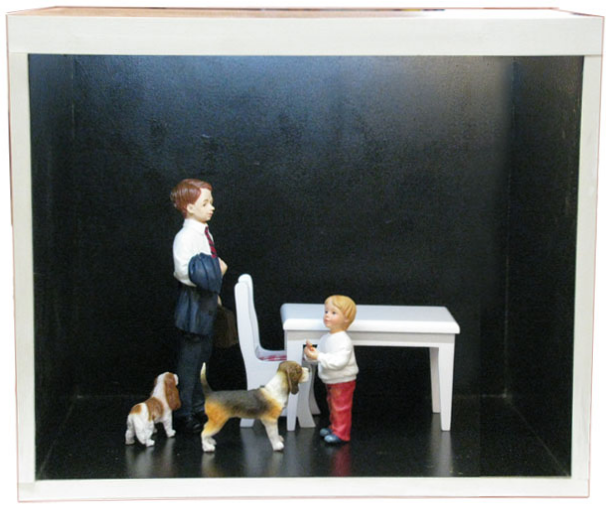

41. LEDs light up the room and the backer aims it just right 41D.png
