Up to slide #19 (with the Plug not plugged in) tests the Power Supply and Lead-in Wire. After that tests the house wiring and connection (see steps 7 - 13).
DHTMLGoodies.com00. Install and test a Jack and Plug../../RGT_Website_assets/ajax-loader.gif
DHTMLGoodies.com01. Jack with pre-soldered Connection Wire, lead-in wire with Plug01D.png
DHTMLGoodies.com02. The Jack fits into a 1/2" hole, usually in the Foundation02D.png
DHTMLGoodies.com05. The Jack will fit 3/8" or 1/2" thick foundations... if thicker, cut a pocket from the inside leaving 1/2"05D.png
DHTMLGoodies.com06. The Jack from the inside... currently the wires are red and black06D.png
DHTMLGoodies.com07. Punch a hole in each lead of the tapewire07D.png
DHTMLGoodies.com08. The Connecting Wire with 1/4" or so stripped08D.png
DHTMLGoodies.com09. I generally put the red wire in the copper and the black wire in the blue09D.png
DHTMLGoodies.com10. A small hollow eyelet on the EL66 tool10D.png
DHTMLGoodies.com11. Insert the Eyelet beside the wire in the hole11D.png

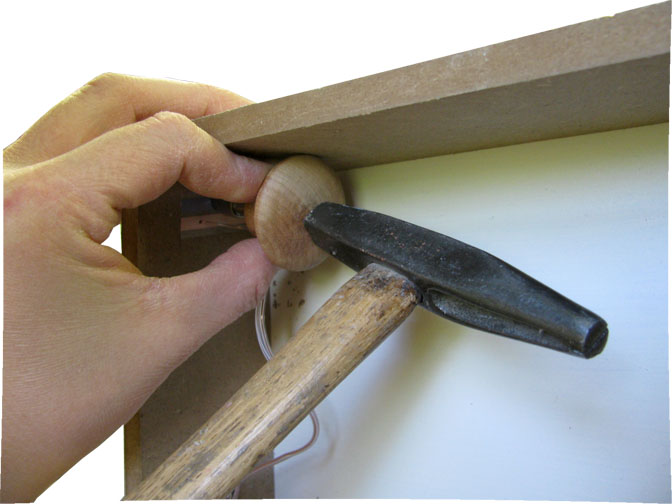

DHTMLGoodies.com12. Drive the eyelet all the way into the hole12D.png
DHTMLGoodies.com13. The Eyelet 'stakes' the wire - pressing it sideways against the Tapewire13D.png
DHTMLGoodies.com14. Connect the Lead-in wire to the Power Supply: striped side to the "+"14D.png
DHTMLGoodies.com15. The Plug is not connected at the Jack - test the Power Supply
Note, a 20 watt Power Supply has to connect with an extension cord for this test.15D.png
DHTMLGoodies.com16. If the Testlight fails to light up, check to be sure it's working16D.png
DHTMLGoodies.com17. If the Testlight isn't working, a Hong-Kong style plug on a light fixture will suffice17D.png
DHTMLGoodies.com18. Some Power Supplies need an extension to one screw for the Testlight to reach both isdes18D.png
DHTMLGoodies.com19. ... A test at the Plug may be easier and tells you "all is well"19D.png
