JM4600 Parts

Slideshows support but do not replace the instructions ../../RGT_Website_assets/ajax-loader.gif

01. Identify the parts using these photos and the measurements in the instructions 01D.png

02. "Stairs" here are the Bottom Stair Blocks 02D.png

03. Mark off the parts in the instructions as you identify them 03D.png

04. label the parts with the names from the parts list 04D.png

05. that way you will know what the instructions call the parts 05D.png

06. ... and it will make following the instructions easier 06D.png

07. Mark the instructions... mark the parts 07D.png

08. Have boxes or bins available to group similar parts and to keep them safe 08D.png

09. for instance, all the floors will be used together early in the assembly 09D.png

10. Everything called "Foundation" is 1 3/4" tall and used at the same time 10D.png

11. .. and all the roofs will be late in the assembly 11D.png

12. 12D.png

13. 13D.png

14. Click the "Details.." link at left for more on the small parts 14D.png

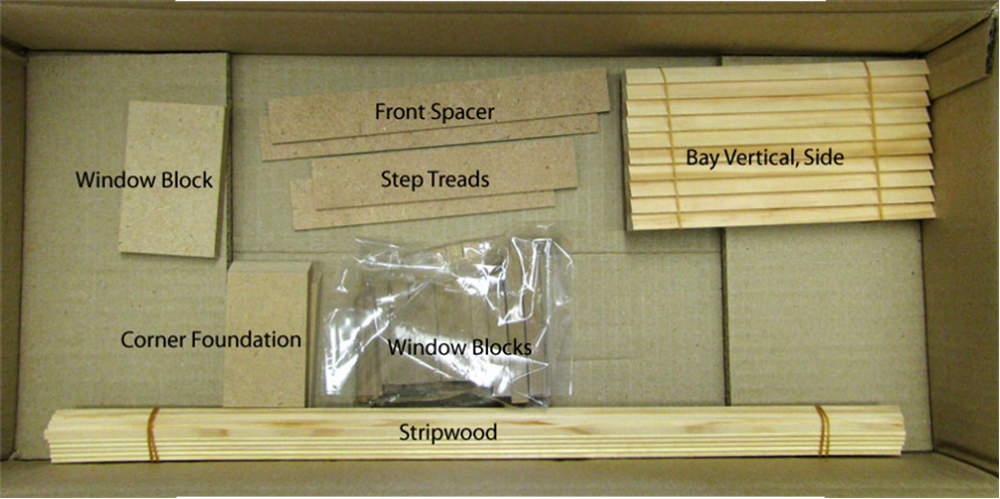

15. .. particularly the Window Frames and Window Blocks 15D.png
