Victorian Painted Lady: Slideshow 8B - Window Blocks
Many parts should be painted before assembly

This slideshow augments but does not replace the instructions

DHTMLGoodies.com

1. This is the 'small parts' box within the JM4600 01D.png

DHTMLGoodies.com

2. and these are the window parts in it 02D.png

DHTMLGoodies.com

3. Bay Vertical - Side 03D.png

DHTMLGoodies.com

4. Bay Vertical - Corner 04D.png

DHTMLGoodies.com

5. Window Panes (there are 6 sizes) - click on big image for where they go 05D.png

DHTMLGoodies.com

6. 1st floor Window Vertical Frames 06D.png

DHTMLGoodies.com

7. 2nd and 3re floor Window Vertical Frames (2 sizes) 07D.png

DHTMLGoodies.com

8. Window Horizontal Frames (2 sizes) 08D.png

DHTMLGoodies.com

9. Window Blocks Bag (plus a few other parts) 09D.png

DHTMLGoodies.com

10. E9453 and E9454 Tower Lower Window Blocks (not bagged) 10D.png

DHTMLGoodies.com

11. Selecting the Window Frames that go with each Pane 11D.png

DHTMLGoodies.com

12. The length of the Pane matches up with the step in the Frame 12D.png

DHTMLGoodies.com

13. Two of each size in a Frame 13D.png

DHTMLGoodies.com

14. the Pane lines up with the step 14D.png

DHTMLGoodies.com

15. Two Frames for each Pane 15D.png

DHTMLGoodies.com

16. See the Window Frame slideshow (slideshow "A") for more info 16D.png

DHTMLGoodies.com

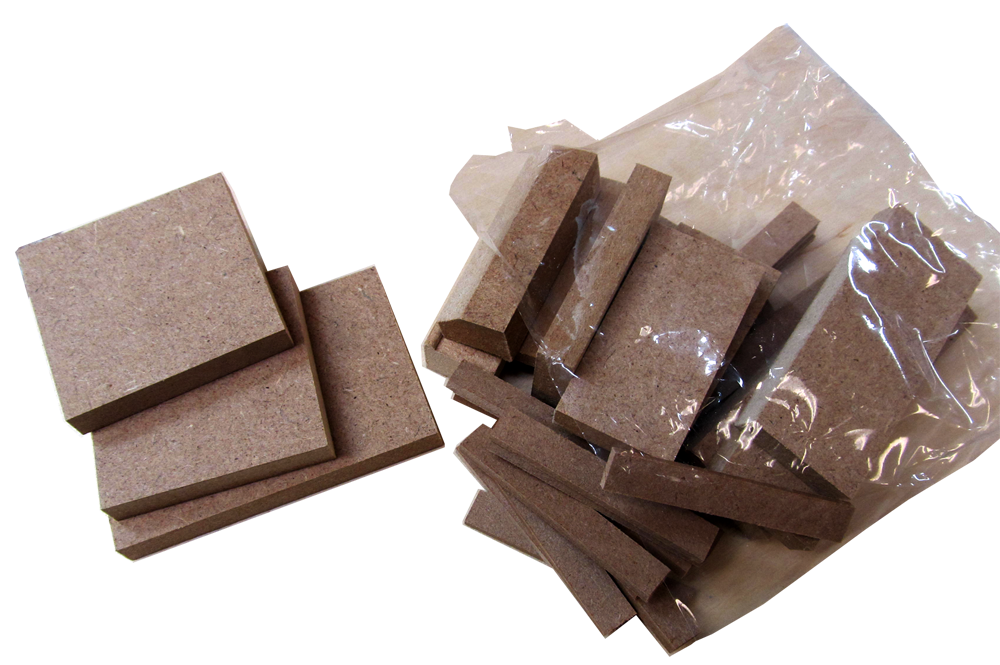

17. Now we're getting to the Window Blocks 17D.png

DHTMLGoodies.com

18. Parts identification: 18D.png

DHTMLGoodies.com

19. The Top Stair Blocks and the Stairhole Glueblock (see slideshow #2) 19D.png

DHTMLGoodies.com

20. Left-bottom Eave (see slideshow #9) 20D.png

DHTMLGoodies.com

21. The 2 1/8 tall Window Spacers are used in the Tower window bottoms (3rd floor) 21D.png

DHTMLGoodies.com

22. The 1 1/8 tall Window Spacers are used in the Middle Floor window bottoms (2nd floor) 22D.png

DHTMLGoodies.com

23. The 1/8" tall Window Spacers are used in the 1st Floor window bottoms and in all the window tops 23D.png

DHTMLGoodies.com

24. Corner Windows use 2 5/16" long Window Blocks - this is the 1st floor 24D.png

DHTMLGoodies.com

25. 1/8" tall Window Blocks top and (1st floor only) bottom 25D.png

DHTMLGoodies.com

26. The Front Window Blocks are 3 5/16" long 26D.png

DHTMLGoodies.com

27. The Window Blocks space the BayVerticle-Corners 27D.png

DHTMLGoodies.com

28. Adjust so the Verticals line up with the Bay Walls' corners 28D.png

DHTMLGoodies.com

29. Final adjust so the window opening is square (use a window pane to check) 29D.png

DHTMLGoodies.com

30. The second floor Window Blocks are 1 1/8" tall on the bottom and 1/8" tall on top 30D.png

DHTMLGoodies.com

31. Check that the opening is nice and square 31D.png

DHTMLGoodies.com

32. The Tower Windows use 2 1/8" Window blocks on the bottom... 32D.png

DHTMLGoodies.com

33. and 1/8" on top 33D.png

DHTMLGoodies.com

34. The corners line up and the opening is square 34D.png

DHTMLGoodies.com

35. six opening sizes for six pane sizes 35D.png

DHTMLGoodies.com

36. We'll go thru it again using painted parts (highly recommended) 36D.png

DHTMLGoodies.com

37. The BayVertical-Sides go in during wall construction (slideshow #6) 37D.png

DHTMLGoodies.com

38. 2 5/16 long Window Blocks for corner windows 38D.png

DHTMLGoodies.com

39. BayVertical-Corners are spaced using the Window Blocks 39D.png

DHTMLGoodies.com

40. 3 5/16" Window Blocks for the front windows 40D.png

DHTMLGoodies.com

41. Line up the Corners with the walls' corners 41D.png

DHTMLGoodies.com

42. Adjust to square 42D.png

DHTMLGoodies.com

43. This is the configuration for the Middle Floor 43D.png

DHTMLGoodies.com

44. Adjust 44D.png

DHTMLGoodies.com

45. Lined up, square, and tight 45D.png
