Queen Anne Bevel Guide

Queen Anne: Using the Bevel Guide

Using the Bevel Guide to cut Block Facia

Click on the picture for a printable copy

6600-1 Parts
Roof - page 16
Stair details
Use the Bevel Guide

DHTMLGoodies.com

1. Bevel Guide, some stripwood, and some clamps 01D.png

DHTMLGoodies.com

2. glue the stripwood to one square edge of the Guide 02D.png

DHTMLGoodies.com

2B. This orientation is best for a right handed builder 02BD.png

DHTMLGoodies.com

3. 03D.png

DHTMLGoodies.com

4. lined up and clamped 04D.png

DHTMLGoodies.com

5. The stripwood will try to slip 05D.png

DHTMLGoodies.com

6. Glue stripwood to a scrap piece of wood (Landing Spacer can be used for this) 06D.png

DHTMLGoodies.com

7. 07D.png

DHTMLGoodies.com

8. One on the top, one on the bottom 08D.png

DHTMLGoodies.com

9. When dry, the tools are ready 09D.png

DHTMLGoodies.com

10. Hooked on the edge of the table for stability 10D.png

DHTMLGoodies.com

11. A piece of Block Facia (if it's painted, paint down) 11D.png

DHTMLGoodies.com

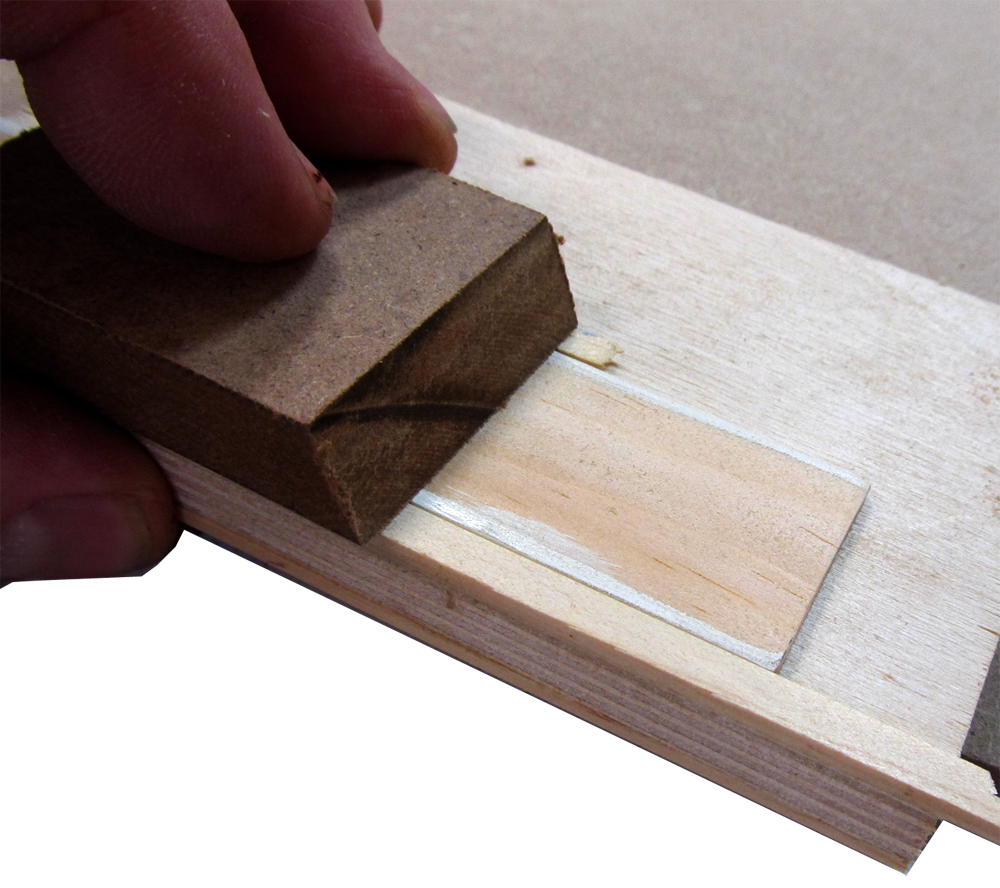

12. Bevel Guide hooked on and squeezed 12D.png

DHTMLGoodies.com

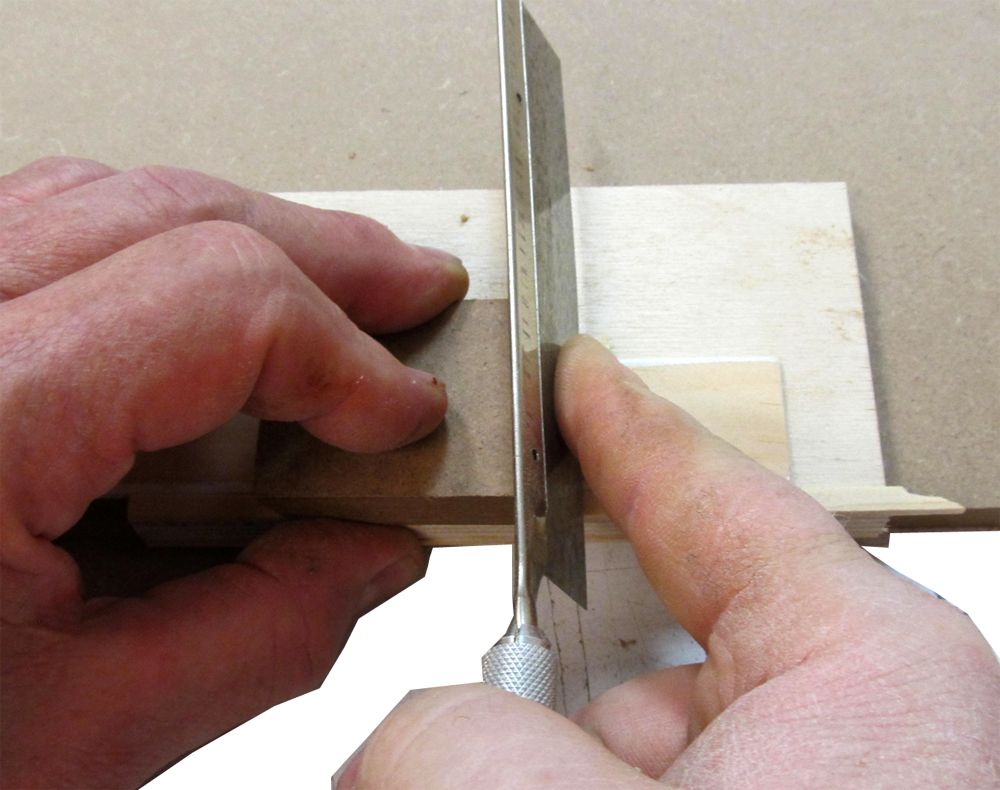

13. Lay the saw against the beveled face of the Guide 13D.png

DHTMLGoodies.com

14. Cut the Facia off at the Bevel angle 14D.png

DHTMLGoodies.com

15. Line up this cut on the house and mark the other end 15D.png

DHTMLGoodies.com

16. The marked piece is to the left 16D.png

DHTMLGoodies.com

17. Line up the mark with the Guide 17D.png

DHTMLGoodies.com

18. Lay the saw against the face of the Guide 18D.png

DHTMLGoodies.com

19. Cut off the piece 19D.png

DHTMLGoodies.com

20. both ends beveled, paint is on the outside (down) 20D.png
