00. An overview of several shingling techniques ../../RGT_Website_assets/ajax-loader.gif

DHTMLGoodies.com

01. "Half-Flashing" the valley means flashing just one side 01D.png

DHTMLGoodies.com

02. It is somewhat different from the "Half-Flashing" link at left 02D.png

DHTMLGoodies.com

03. Spreading Tacky Glue for copper 03D.png

DHTMLGoodies.com

04. Here we are gluing on a 5/8" or 3/4" wide strip of copper 04D.png

DHTMLGoodies.com

05. I usually use gloves to avoid fingerprints 05D.png

DHTMLGoodies.com

06. Rub it down and, with fresh toweling, clean up excess glue 06D.png

DHTMLGoodies.com

07. Cut it to fit with a sharp craft knife so it doesn't tear 07D.png

DHTMLGoodies.com

08. Marking the width of the valley - 3/8 is good 08D.png

DHTMLGoodies.com

10. A piece of stripwood straight up-and-down helps straighten the shingle 10D.png

DHTMLGoodies.com

11. Now the stripwood finds the valley angle 11D.png

DHTMLGoodies.com

12. Marking the valley angle on the shingle 12D.png

DHTMLGoodies.com

13. Cutting with scissors - the piece on the left will be intact... 13D.png

DHTMLGoodies.com

14. the piece on the right will split. 14D.png

DHTMLGoodies.com

15. Use the first shingle as a template for the rest 15D.png

DHTMLGoodies.com

16. Cutting with a fine-toothed saw 17D.png

DHTMLGoodies.com

16. It leaves both sides intact 16D.png

DHTMLGoodies.com

18. but it is slow 18D.png

DHTMLGoodies.com

19. And on this roof, the second side isn't used 19D.png

DHTMLGoodies.com

09. Now I am cutting a starter course of shingles 1/4 shingle long 09D.png

DHTMLGoodies.com

21. The "Starter Course" lifts the bottom edge of the first full course 21D.png

DHTMLGoodies.com

22. .. so it matches the upper courses 22D.png

DHTMLGoodies.com

20. Following the marked width of the flashing 20D.png

DHTMLGoodies.com

23. Cutting a 'fill-in' shingle 23D.png

DHTMLGoodies.com

24. Save straight-grained shingles as you find them for cutting 24D.png

DHTMLGoodies.com

25. Shave or sand the edge 25D.png

DHTMLGoodies.com

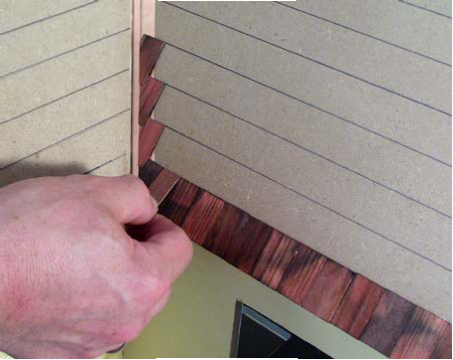

26. Make the fit perfect 26D.png

DHTMLGoodies.com

27. Start every-other course with a half-shingle 27D.png

DHTMLGoodies.com

28. the joint between shingles weaves back-and-forth from course to course 28D.png

DHTMLGoodies.com

29. the other side of the valley may have a different angle 29D.png

DHTMLGoodies.com

30. Cut shingles to go around the chimney 30D.png

DHTMLGoodies.com

31. Start the Attic cutout with starters too 31D.png

DHTMLGoodies.com

32. 32D.png
