Troubleshooting Dollhouse Wiring

00. Restore an eyelet connection that isn't working. ../Assets/ajax-loader.gif

30. The tester shows power on the main loop 30D.png

31. But doesn't on this side-run after the connection 31D.png

32. But when I poke a pin into the blue/blue at the connection, it lights up! 32D.png

33. The eyelet in the blue/blue isn't making a connection 33D.png

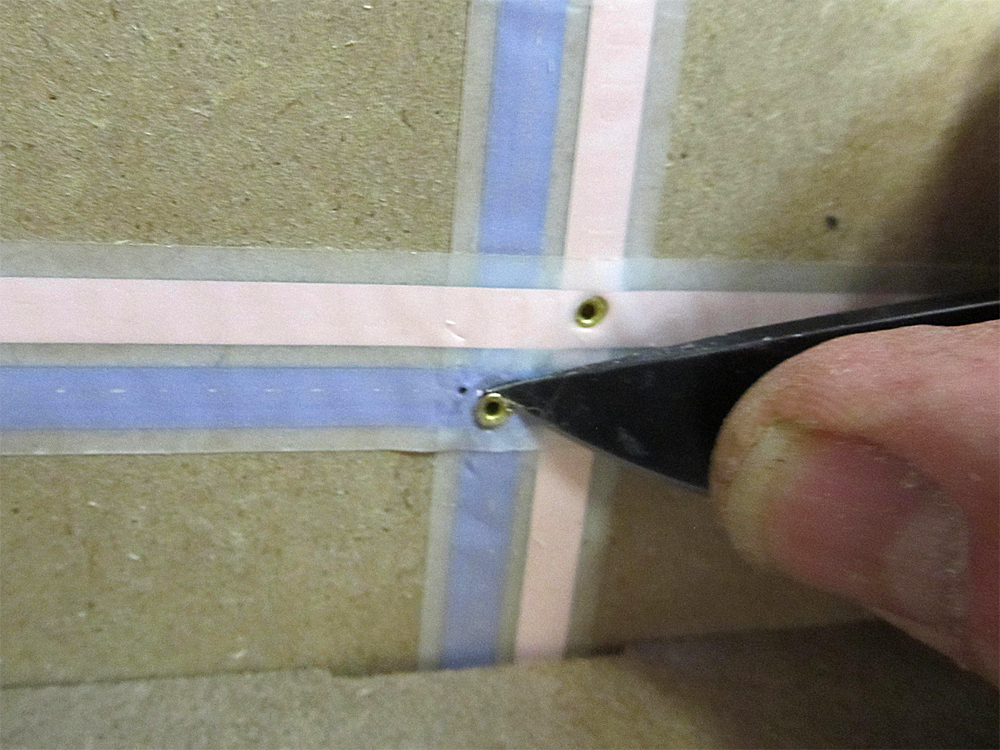

34. I will remove that eyelet carefully... 34D.png

35. working around the eyelet so I don't rip the tapewire 35D.png

36. The eyelet is out 36D.png

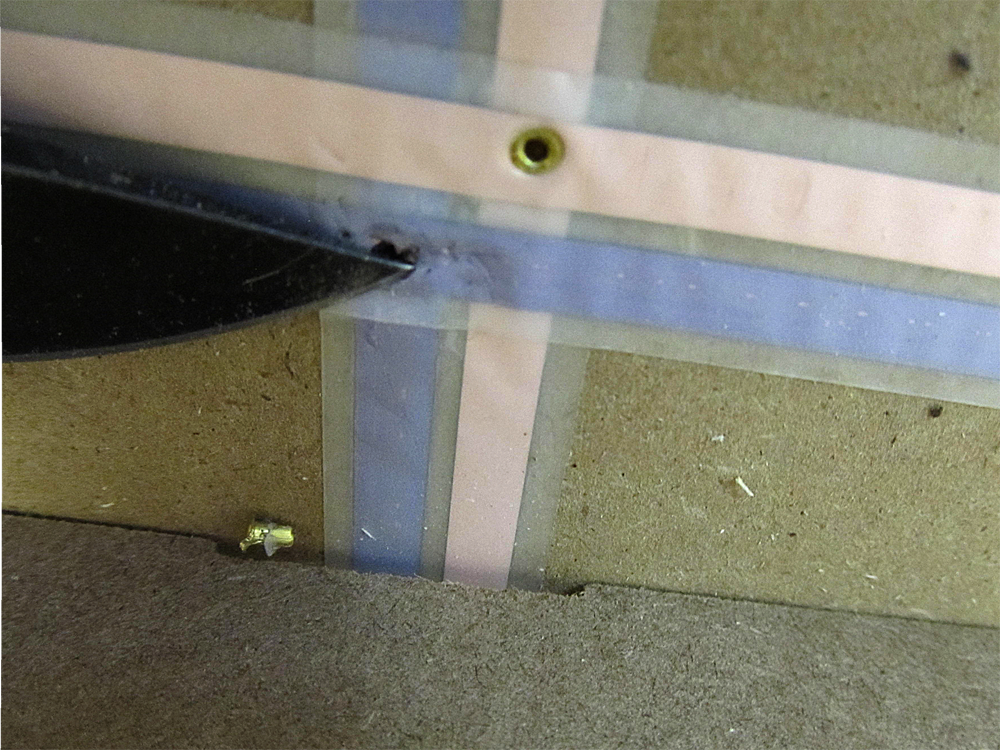

37. Smoothing the conductor material into the hole 37D.png

38. 1/2" or 5/8" of #22 or #24 wire 38D.png

39. Folded in the middle 39D.png

40. Hold it most of the way into the hole 40D.png

41. Put the eyelet back in sharing the hole with the wire 41D.png

42. The EL-66 tool lets you pound it 42D.png

43. .. all the way in 43D.png

44. Fold the wire back-and-forth until it breaks off 44D.png

45. .. or clip it with nail clippers - all the excess wire is gone 45D.png

46. And now it works 46D.png
