Lighthouse: Gallery Support Brackets

Lighthouse Home
Foundation
Entryway
Walls
Gallery Deck
Gallery Support Brackets (here)
Beacon Housing
Roof
Stairs

'20 Instructions

DHTMLGoodies.com

0. LH100 Gallery Support Brackets 00D.png

DHTMLGoodies.com

1. Supplies: J-Rail; 3/8 x 3/8; Razor saw; Paint and brush; sandpaper; and the instructions 01D.png

DHTMLGoodies.com

2. Paint the sticks 02D.png

DHTMLGoodies.com

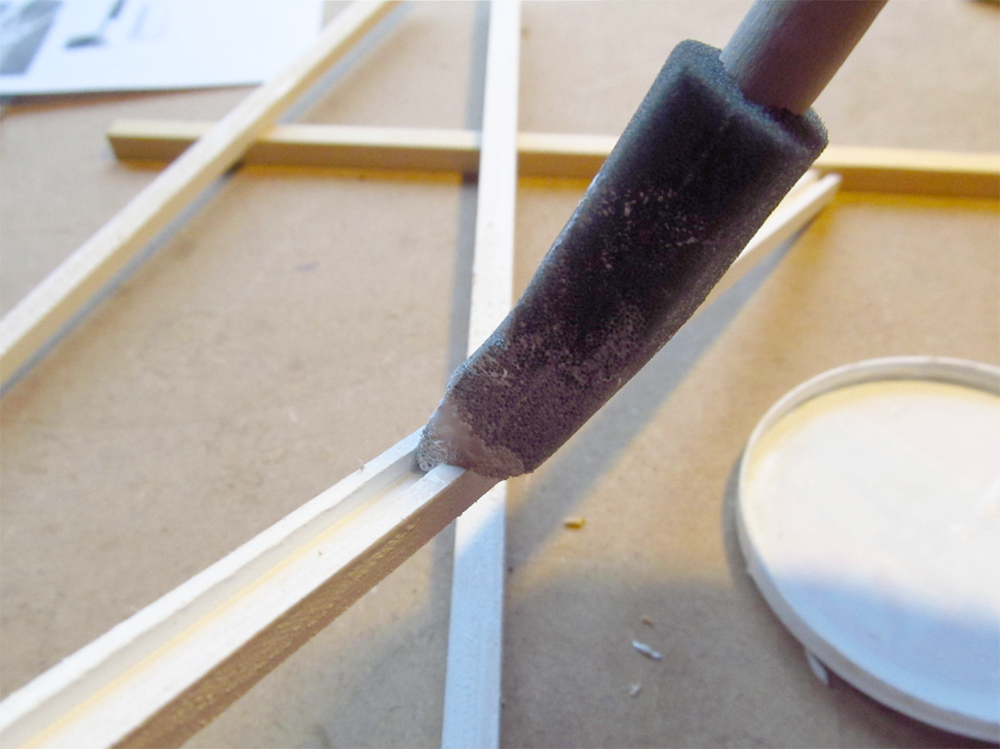

3. Just enough paint to fill the grain, not to put any on the surface 03D.png

DHTMLGoodies.com

4. Let the paint dry 04D.png

DHTMLGoodies.com

5. Sand down to the wood 05D.png

DHTMLGoodies.com

6. The paint is satiny, transparent, and lots of wood is showing 06D.png

DHTMLGoodies.com

7. This diagram guides the cuts 07D.png

DHTMLGoodies.com

7a. Click on the picture above for a printable template CuttingTemplate.png

DHTMLGoodies.com

8. Line up the materials and saw carefully with the diagram 08D.png

DHTMLGoodies.com

9. Start the cut on the diagram 09D.png

DHTMLGoodies.com

10. Finish it on a cutting board or waste piece of wood 10D.png

DHTMLGoodies.com

11. This angle matches the diagram 11D.png

DHTMLGoodies.com

12. This one is straight 12D.png

DHTMLGoodies.com

13. -angled... 13D.png

DHTMLGoodies.com

14. -straight... 14D.png

DHTMLGoodies.com

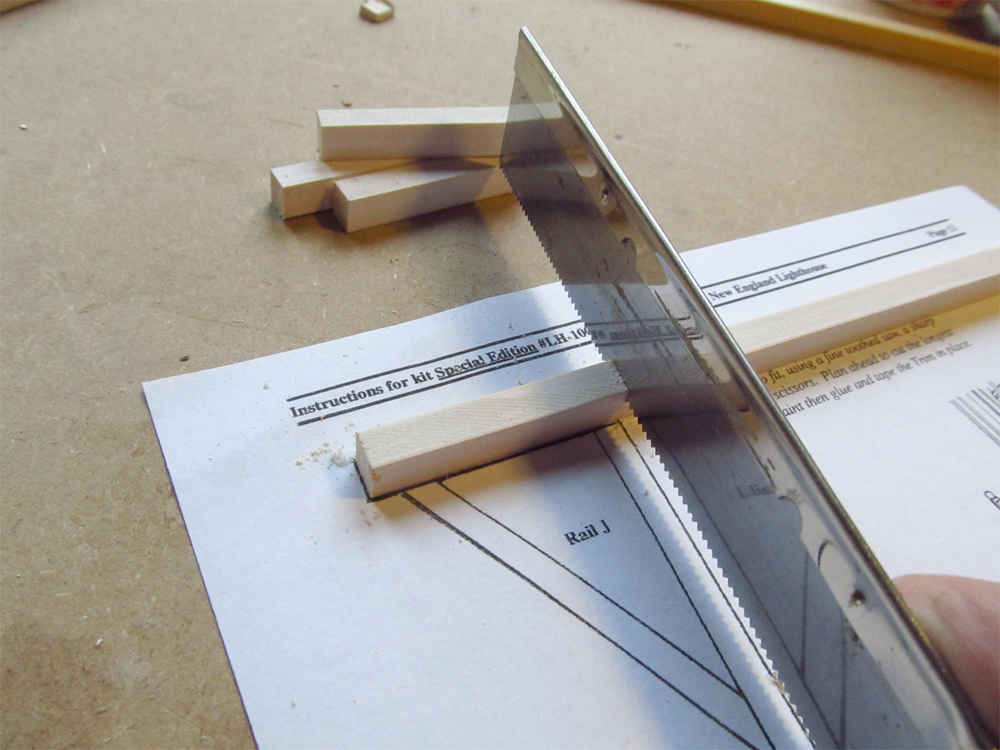

15. Back-and-forth to use each leftover angle. 15D.png

DHTMLGoodies.com

16. Make 8 of them. 16D.png

DHTMLGoodies.com

17. The J-Rail groove faces the wall 17D.png

DHTMLGoodies.com

18. Use the diagram´s angle on top 18D.png

DHTMLGoodies.com

19. Draw a line parallel to that angle here 19D.png

DHTMLGoodies.com

20. 20D.png

DHTMLGoodies.com

21. Use the line to guide the saw 21D.png

DHTMLGoodies.com

22. Keep the saw carefully straight up-and-down 22D.png

DHTMLGoodies.com

23. Make 8 of this part too. 23D.png

DHTMLGoodies.com

24. Another Parallel line to guide the strut´s cut 24D.png

DHTMLGoodies.com

25. the J-Rail´s groove faces the back 25D.png

DHTMLGoodies.com

26. Cutting the length and top angle 26D.png

DHTMLGoodies.com

27. I´ll make 8 of these too. 27D.png

DHTMLGoodies.com

28. Cutting the bottom angle 28D.png

DHTMLGoodies.com

29. This is the strut 29D.png

DHTMLGoodies.com

30. 8 of each 30D.png

DHTMLGoodies.com

31. Clean up the fuzz 31D.png

DHTMLGoodies.com

32. Glue them together 32D.png

DHTMLGoodies.com

33. Let the glue stiffen for a half-minute... 33D.png

DHTMLGoodies.com

34. But let the glue dry with them sitting in place 34D.png

DHTMLGoodies.com

35. Sand and clean 35D.png

DHTMLGoodies.com

36. Soften the edges and corners 36D.png

DHTMLGoodies.com

37. Paint again 37D.png

DHTMLGoodies.com

38. Line up the Banding with the clapboard 38D.png

DHTMLGoodies.com

39. Start the cut in place, finish it on the cutting board 39D.png

DHTMLGoodies.com

40. 40D.png
