JM401 Assembly - Housebody

DHTMLGoodies.com

Check the fit of the Floors in the Grooves... if tight, scrape them. ../Buttons/Scrape.png

DHTMLGoodies.com

1. Spread glue in the grooves of both Sides Housebody/01D.png

DHTMLGoodies.com

2. Stand the Sides on edge, insert the Floors into the grooves Housebody/02D.png

DHTMLGoodies.com

3. The edges that are 'up' are the front edges. Housebody/03D.png

DHTMLGoodies.com

4. The Floors stick out 1/8" in front (this will go into the Front's grooves) Housebody/04D.png

DHTMLGoodies.com

5. Tape the base firmly into the groove Housebody/05D.png

DHTMLGoodies.com

6. all the way to the top of the grooves Housebody/06D.png

DHTMLGoodies.com

7. Tape the Sides above the top of the front edges Housebody/07D.png

DHTMLGoodies.com

8. Housebody/08D.png

DHTMLGoodies.com

9. The Groove Fill makes the wall smooth in the stairwell Housebody/09D.png

DHTMLGoodies.com

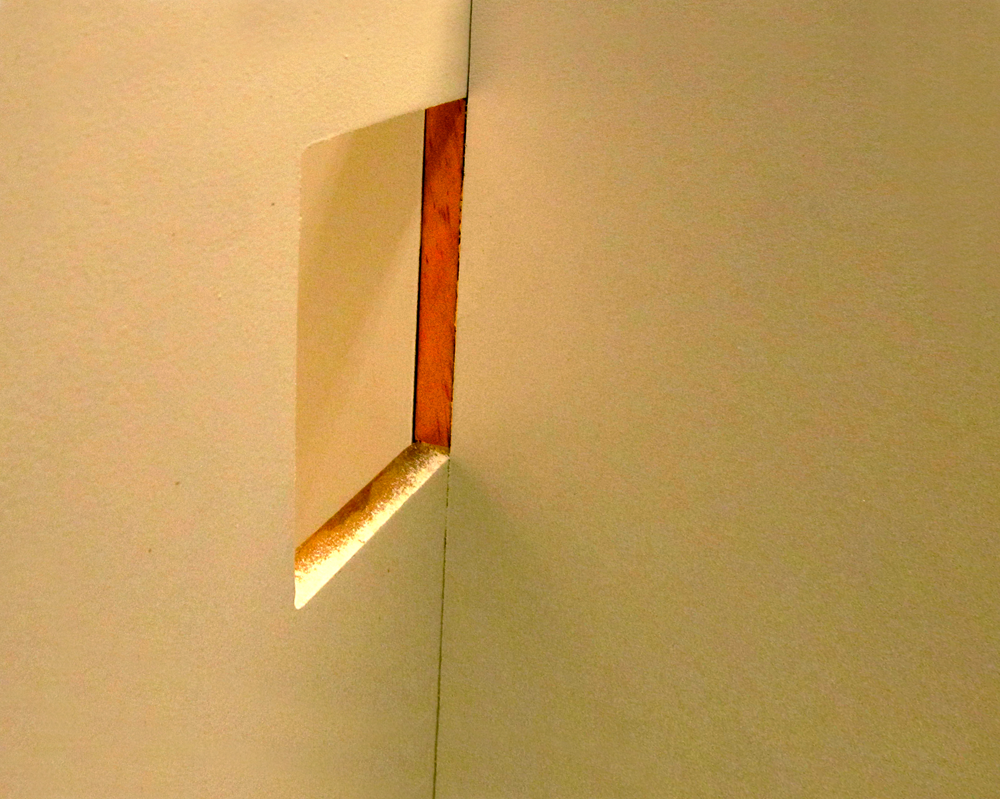

10. Housebody/10D.png

DHTMLGoodies.com

11. Scraping for the glue joint to the Sides Housebody/11D.png

DHTMLGoodies.com

12. Spread glue in the Front's grooves and the front edges of the Sides Housebody/12D.png

DHTMLGoodies.com

13. A well taped corner has tape in 3 directions Housebody/13D.png

DHTMLGoodies.com

14. Push the Base Floor to the top of the grooves - tape firmly Housebody/14D.png

DHTMLGoodies.com

15. Push the Housebody side-to-side to line up with the Front Housebody/15D.png

DHTMLGoodies.com

16. Line up the Sides to the Front all the way from base to top Housebody/16D.png

DHTMLGoodies.com

17. Tape firmly Housebody/17D.png

DHTMLGoodies.com

18. Stand the house upright and tape the back tightly Housebody/18D.png

DHTMLGoodies.com

19. This joint didn't tighten! Housebody/19D.png

DHTMLGoodies.com

20. I'm stretching tape all the way around the house Housebody/20D.png

DHTMLGoodies.com

21. Pulling the tape as I go - several times around the house Housebody/21D.png

DHTMLGoodies.com

22. Now it's tight! Housebody/22D.png

DHTMLGoodies.com

23. Check: everything is tight, the Base Floor is to the top of the groove. Housebody/22D.png

DHTMLGoodies.com

24. Lay the house on its back, weight the front, let the glue dry Housebody/23D.png

JM401 Assembly: Housebody
		DHTMLGoodies.com Check the fit of the Floors in the Grooves... if tight, scrape them. ../Buttons/Scrape.png DHTMLGoodies.com 1. Spread glue in the grooves of both Sides Housebody/01D.png DHTMLGoodies.com 2. Stand the Sides on edge, insert the Floors into the grooves Housebody/02D.png DHTMLGoodies.com 3. The edges that are 'up' are the front edges. Housebody/03D.png DHTMLGoodies.com 4. The Floors stick out 1/8" in front (this will go into the Front's grooves) Housebody/04D.png DHTMLGoodies.com 5. Tape the base firmly into the groove Housebody/05D.png DHTMLGoodies.com 6. all the way to the top of the grooves Housebody/06D.png DHTMLGoodies.com 7. Tape the Sides above the top of the front edges Housebody/07D.png DHTMLGoodies.com 8. Housebody/08D.png DHTMLGoodies.com 9. The Groove Fill makes the wall smooth in the stairwell Housebody/09D.png DHTMLGoodies.com 10. Housebody/10D.png DHTMLGoodies.com 11. Scraping for the glue joint to the Sides Housebody/11D.png DHTMLGoodies.com 12. Spread glue in the Front's grooves and the front edges of the Sides Housebody/12D.png DHTMLGoodies.com 13. A well taped corner has tape in 3 directions Housebody/13D.png DHTMLGoodies.com 14. Push the Base Floor to the top of the grooves - tape firmly Housebody/14D.png DHTMLGoodies.com 15. Push the Housebody side-to-side to line up with the Front Housebody/15D.png DHTMLGoodies.com 16. Line up the Sides to the Front all the way from base to top Housebody/16D.png DHTMLGoodies.com 17. Tape firmly Housebody/17D.png DHTMLGoodies.com 18. Stand the house upright and tape the back tightly Housebody/18D.png DHTMLGoodies.com 19. This joint didn't tighten! Housebody/19D.png DHTMLGoodies.com 20. I'm stretching tape all the way around the house Housebody/20D.png DHTMLGoodies.com 21. Pulling the tape as I go - several times around the house Housebody/21D.png DHTMLGoodies.com 22. Now it's tight! Housebody/22D.png DHTMLGoodies.com 23. Check: everything is tight, the Base Floor is to the top of the groove. Housebody/22D.png DHTMLGoodies.com 24. Lay the house on its back, weight the front, let the glue dry Housebody/23D.png
	Pre-Assembly Assembly Home Housebody (here) Gable Porch The parts are painted (one coat); if wiring, the parts are prepared. Continue to "let the glue dry" without stopping.
This slideshow supports but does not replace the instructions
