If your floors are tight in the grooves, scrape them

Click on the thumbnail for a printable copy

DHTMLGoodies.com

0. Glue, tape, and weight the Housebody to the Foundation Assembly/Porch/00D.png

DHTMLGoodies.com

00. Centered side-to-side Assembly/Porch/000D.png

DHTMLGoodies.com

1. the overhang is even front-to-back Assembly/Porch/01D.png

DHTMLGoodies.com

2. Lift the Railing if desired - Apply glue to each end Assembly/Porch/02D.png

DHTMLGoodies.com

3. The glue marks the Postbase Assembly/Porch/03D.png

DHTMLGoodies.com

4. Texture paint but avoid where the Railing will attach Assembly/Porch/04D.png

DHTMLGoodies.com

5. Texture paint both inside faces Assembly/Porch/05D.png

DHTMLGoodies.com

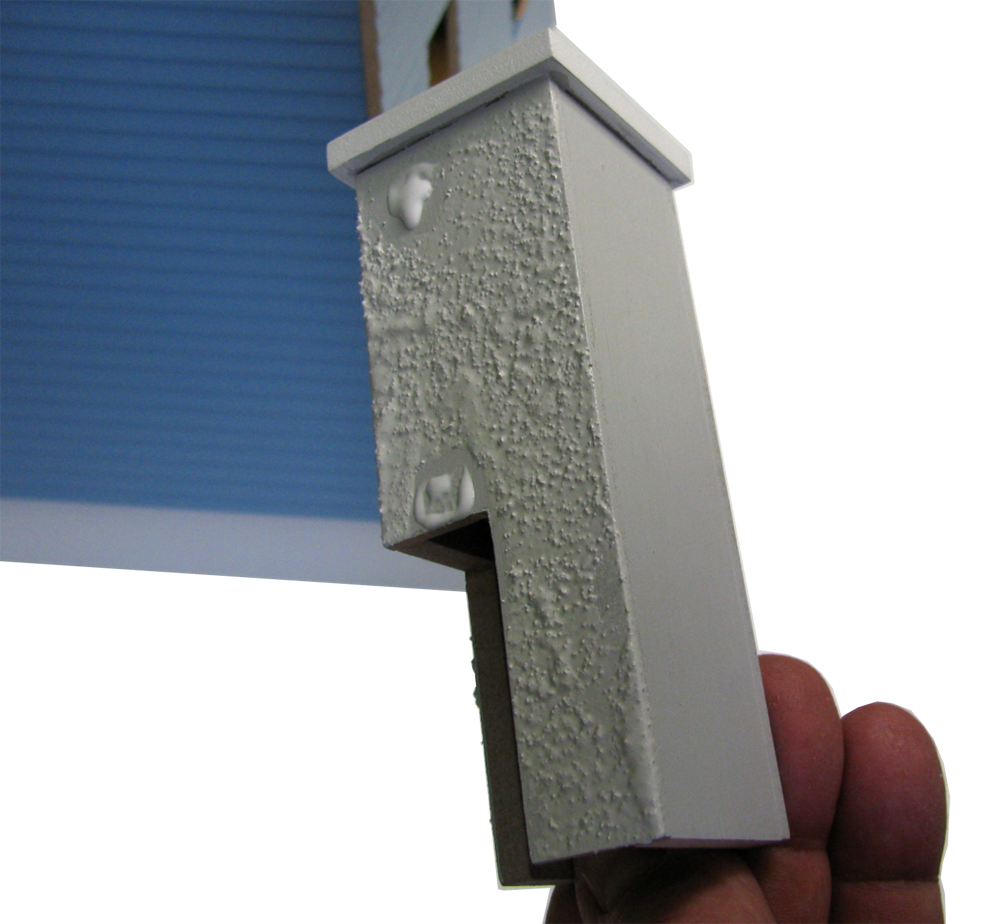

6. leave the outside faces clean for now Assembly/Porch/06D.png

DHTMLGoodies.com

7. Apply glue where the Postbase will touch the Porch Floor Assembly/Porch/07D.png

DHTMLGoodies.com

8. The Handy Square and the Porch Beam straighten the Postbase Assembly/Porch/08D.png

DHTMLGoodies.com

9. The other Postbases are not glued yet Assembly/Porch/09D.png

DHTMLGoodies.com

10. Set up the right Postbase, the side Railing, and the front Railing Assembly/Porch/10D.png

DHTMLGoodies.com

11. The right Postbase is marked by two railings Assembly/Porch/11D.png

DHTMLGoodies.com

12. Texture paint, avoid the marks Assembly/Porch/12D.png

DHTMLGoodies.com

13. Straightened with the Handy Square and Porch Beam Assembly/Porch/13D.png

DHTMLGoodies.com

14. Mark the Middle Postbase Assembly/Porch/14D.png

DHTMLGoodies.com

15. You can avoid the marks because of the 1st-coat and sanding Assembly/Porch/15D.png

DHTMLGoodies.com

16. Straight and square - let the glue dry Assembly/Porch/16D.png

DHTMLGoodies.com

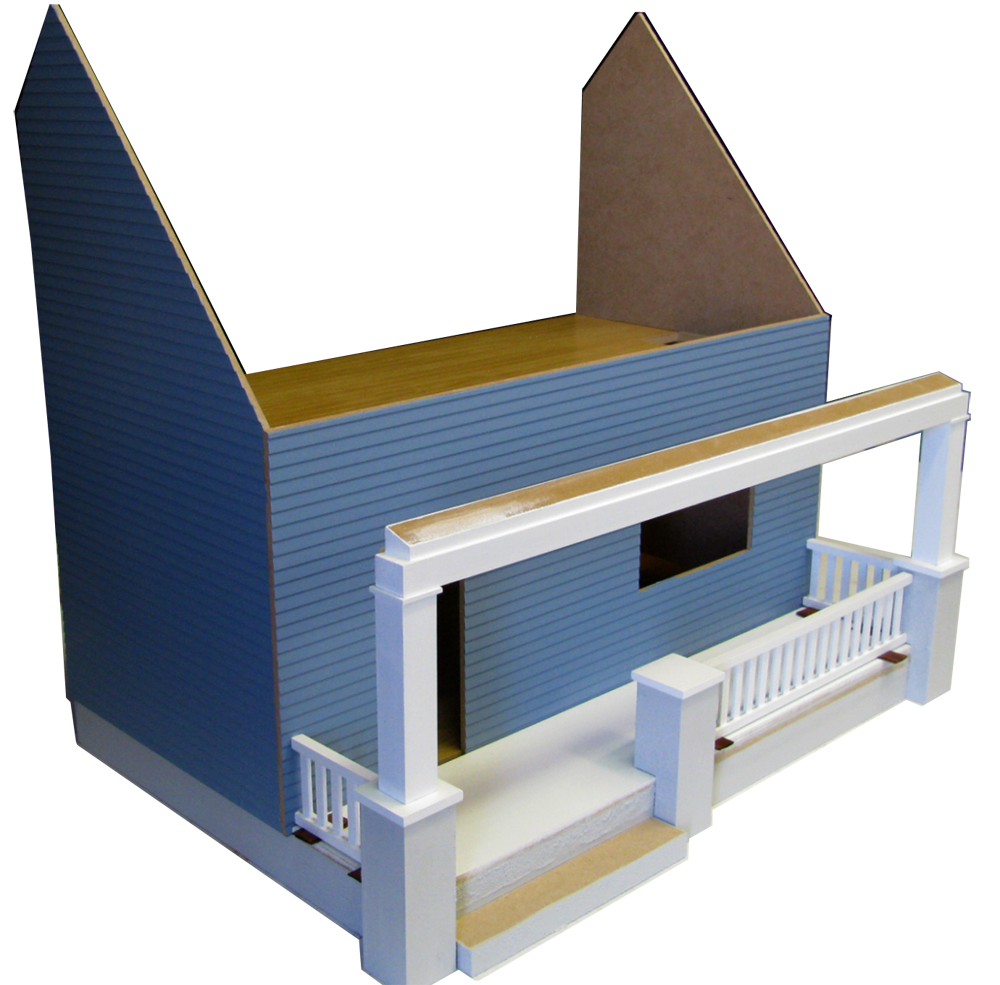

18. Glue on the Post/Postcaps centered on the Postbases. Assembly/Porch/18D.png

DHTMLGoodies.com

19. The Porch Beam is lined up with the Posts - front, back, and on the ends Assembly/Porch/19D.png

DHTMLGoodies.com

20. Paint the Foundation - mask the glue-surface for the Step Assembly/Porch/20D.png

DHTMLGoodies.com

21. The Tread is up-side-down Assembly/Porch/21D.png

DHTMLGoodies.com

22. Clean the Porch Floor's edge - trim will glue there Assembly/Porch/22D.png

DHTMLGoodies.com

23. Clean the Tread Assembly/Porch/23D.png

DHTMLGoodies.com

24. The part of the Foundation that will show has texture paint Assembly/Porch/24D.png

DHTMLGoodies.com

25. the Trim is showing but it's not glued on yet Assembly/Porch/25D.png

DHTMLGoodies.com

17. Assembly/Porch/17D.png

This slideshow does not show the Attic Ceiling, but it should be there on your build
