B1895 Roof Assembly

1. Prepare tape Assembly/Roof/01D.png

2. Glue and tape the Rear Roof to the Front Roof Assembly/Roof/02D.png

3. The Front Roof overlaps the Rear Roof Assembly/Roof/03D.png

4. Lined up on the ends Assembly/Roof/04D.png

5. Tape across each end so the joint won't slip Assembly/Roof/05D.png

6. I am using the Front Step's Tread to center the Front Roof... Assembly/Roof/06D.png

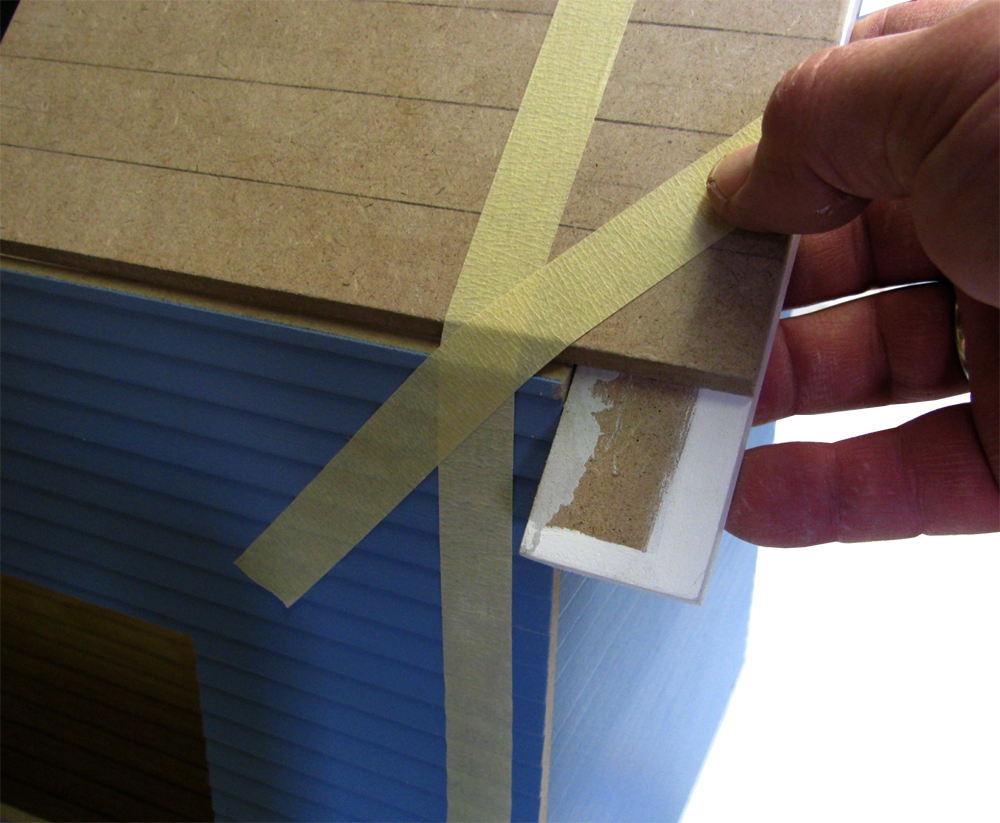

7. it's not quite the same as the overhang, but feeling the 'centering' is easier than measuring Assembly/Roof/07D.png

8. Feeling at the top of the peak too so it's the same as at the bottom Assembly/Roof/08D.png

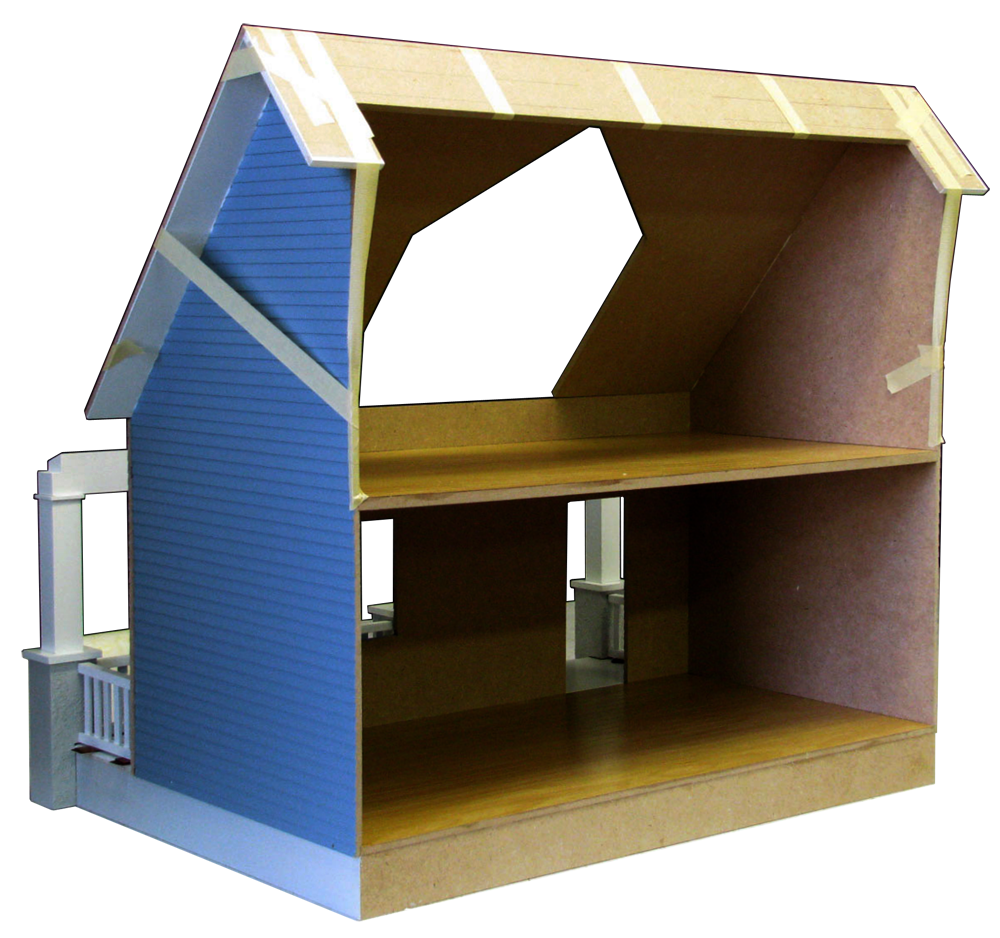

9. Tape for a tight joint Assembly/Roof/09D.png

10. Lay glue on the Porch Roof's back edge, the Front's top edge, and the Porch Beam top Assembly/Roof/10D.png

11. Some of the tape keeps the Porch Roof tight to the Front Roof Assembly/Roof/11D.png

12. Some of the tape keeps the Porch Posts straight up-and-down Assembly/Roof/12D.png

13. Check everything - straight, tight, and centered Assembly/Roof/13D.png

14. Put a Porch Rafter End in place on both ends to check that the overhang is the same Assembly/Roof/14D.png

15. Weight and let the glue dry Assembly/Roof/15D.png
