Victorian Painted Lady: Assemble the Roof
Many parts should be painted before assembly

DHTMLGoodies.com

The roof needs temporary support at the back Roof01_lg.png

DHTMLGoodies.com

1" stripwood makes a post Roof03_lg.png

DHTMLGoodies.com

cut it to EXACTLY match the Attic Front Roof02_lg.png

DHTMLGoodies.com

Gable Triangles taped - not glued! - together Roof04_lg.png

DHTMLGoodies.com

The post taped to the triangles makes the stand Roof05_lg.png

DHTMLGoodies.com

The stand is at the back edge in the middle Roof06_lg.png

DHTMLGoodies.com

Shingle Guidelines: the first is 1 1/4 Roof07_lg.png

DHTMLGoodies.com

connect the marks Roof09_lg.png

DHTMLGoodies.com

Tape the Roofs together at the peak Roof10_lg.png

DHTMLGoodies.com

Turn the Roofs over - glue in the "V" Roof11_lg.png

DHTMLGoodies.com

Spread glue on the Attic Front Roof12_lg.png

DHTMLGoodies.com

Ready for the Roof Roof13_lg.png

DHTMLGoodies.com

Set the Roof on the Attic Front, lined up in front. Be gentle with the stand Roof14_lg.png

DHTMLGoodies.com

Lined up in front, taped firmly Roof15_lg.png

DHTMLGoodies.com

Taped tight, lined up Roof16_lg.png

DHTMLGoodies.com


DHTMLGoodies.com

Lined up with the edge of the Floor Roof17b_lg.png

DHTMLGoodies.com

The stand holds up the Roof, the Dividers hold the Floors straight Stand_L.png

DHTMLGoodies.com

Tape the Roofs to the Sides Roof19_lg.png

DHTMLGoodies.com

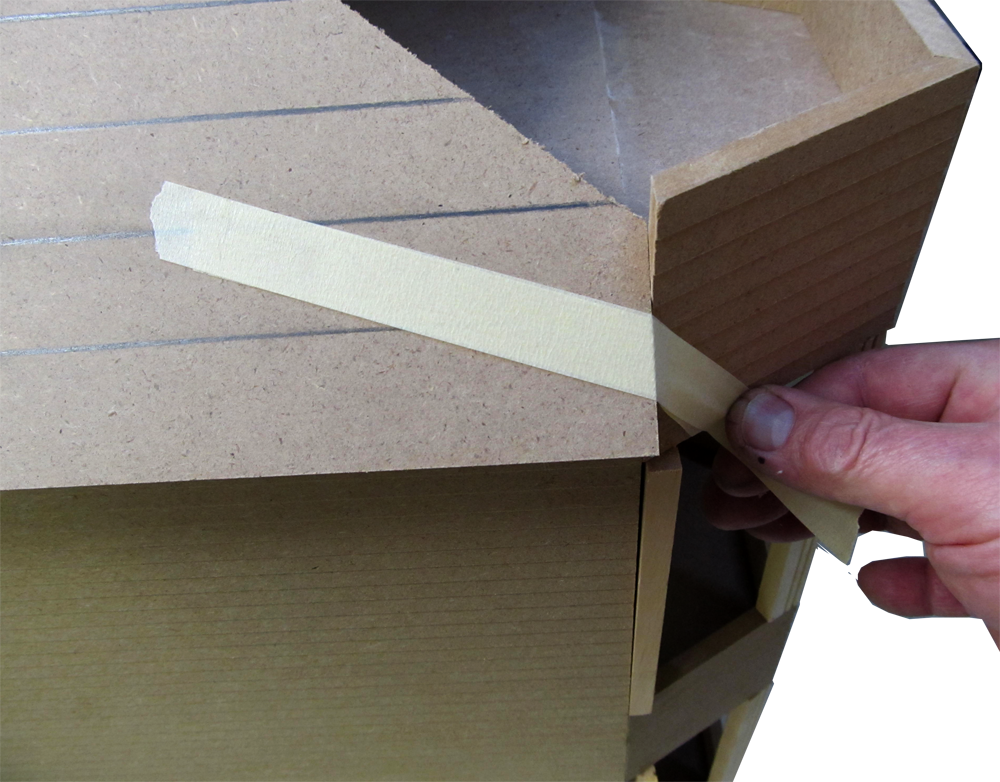

Taping around a corner is tricky but keep trying - you can do it! Roof20_lg.png

DHTMLGoodies.com

The smooth Kneewall face is the inside - don't glue that face Roof21_lg.png

DHTMLGoodies.com

The inside face is straight up-and-down Roof22_lg.png

DHTMLGoodies.com

Edge-tape a block to keep the Kneewall tight Roof23_lg.png

DHTMLGoodies.com

The Kneewall lines up in back Roof24_lg.png

DHTMLGoodies.com

The other kneewall lines up in back too Roof25_lg.png

DHTMLGoodies.com

Oops - I didn't mean to glue the part that sticks out in front Roof26_lg.png

DHTMLGoodies.com

Next is the Bay Fronts ../../Buttons/ClickHere.png
