JM907 Foundation Assembly

00. Click on the picture (above) for a printable copy Foundation/Foundation00L.png

01. Foundation Parts Foundation/Foundation01_lg.jpg

02. Foundation/Foundation02_lg.jpg

03. Foundation/Foundation03_lg.jpg

04. Detail of this sub-assembly Foundation/907Foundation08L.png

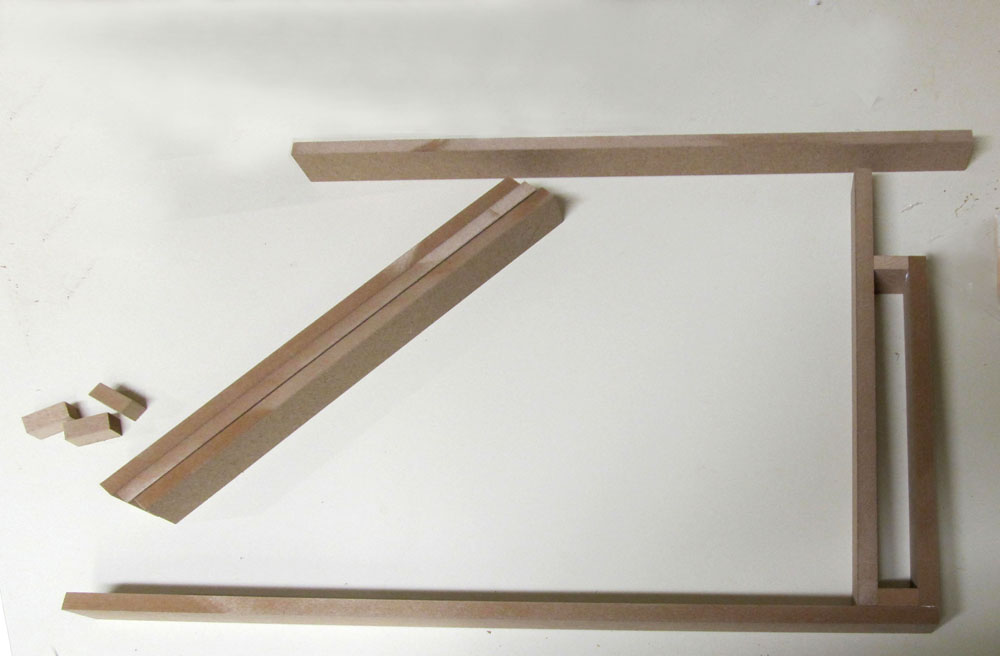

05. View from the back Foundation/907Foundation09L.jpg

06. spaced 6 3/16" Foundation/Foundation04_lg.jpg

07. Taped tight and square Foundation/Foundation05_lg.jpg

08. view from the front Foundation/Foundation06_lg.jpg

Are you wiring? Click the button and go the the Wiring Page before attaching the Foundation ../Buttons/ClickHere.png

10. Ready for the Foundation? Spread glue on the top edges Foundation/Foundation07_lg.jpg

11. Set the House on the Foundation Foundation/Foundation08_lg.jpg

12. Lined up in back Foundation/Foundation09_lg.jpg

13. Centered side-to-side. Tape to the floor if it has been protected with finish Foundation/Foundation10_lg.jpg

Centered side-to-side in front too Foundation/Foundation11_lg.jpg

14. The Porch Base Floor is 1/4" thick Foundation/Foundation12_lg.jpg

15. Glue, tape, and weight Foundation/Foundation13_lg.jpg
