01. The Eaves are already attached 01D.png

DHTMLGoodies.com

02. the house and moldings are all painted by now 02D.png

DHTMLGoodies.com

03. Lay the house on its back and put on the moldings without glue. The stripwood fits around the Attic Crosspiece 03D.png

DHTMLGoodies.com

04. Close up of the Gable moldings 04D.png

DHTMLGoodies.com

05. The Cutting Guide glued to a Porch Spacer will help with the cuts 05D.png

DHTMLGoodies.com

06. An X-Acto Razor Saw or equivalent 06D.png

DHTMLGoodies.com

07. The stripwood will fit on the Attic Front, under the Eaves 07D.png

DHTMLGoodies.com

08. The lighter blue color is the bottom surface of the Eaves 08D.png

DHTMLGoodies.com

09. 1" Stripwood cut to the diagram - confirm the fit on your house 09D.png

DHTMLGoodies.com

10. Test with the Attic Crosspiece before proceeding 10D.png

DHTMLGoodies.com

11. 3/4" Stripwood 11D.png

DHTMLGoodies.com

12. They are the same length on the outside except for the nip on the left 12D.png

DHTMLGoodies.com

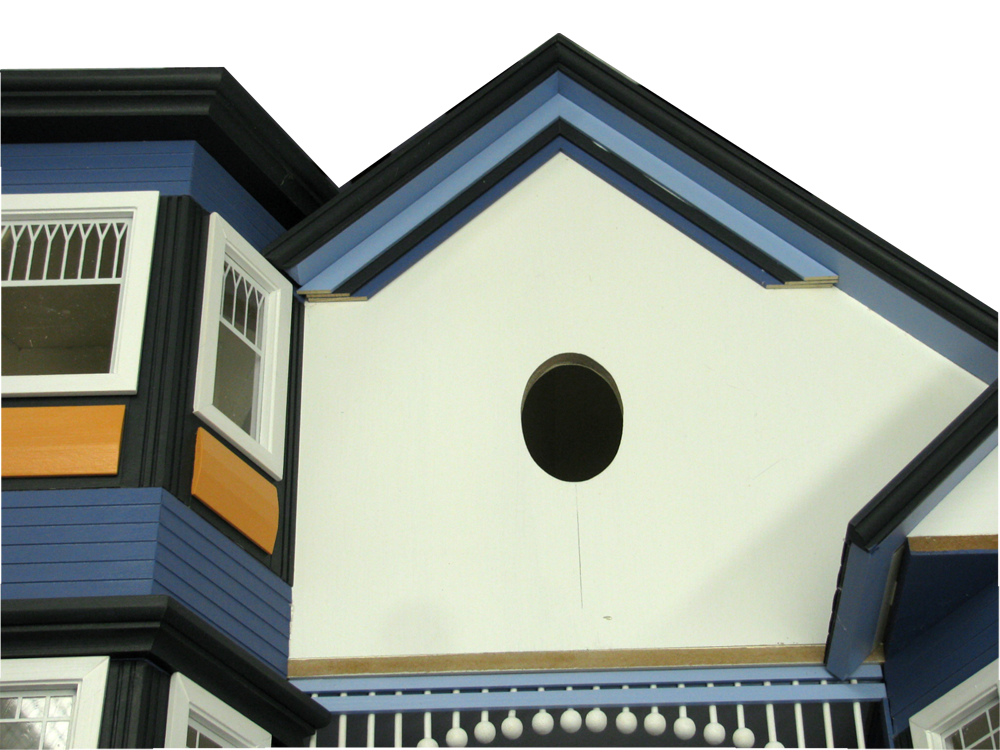

13. 1/2" Stripwood 13D.png

DHTMLGoodies.com

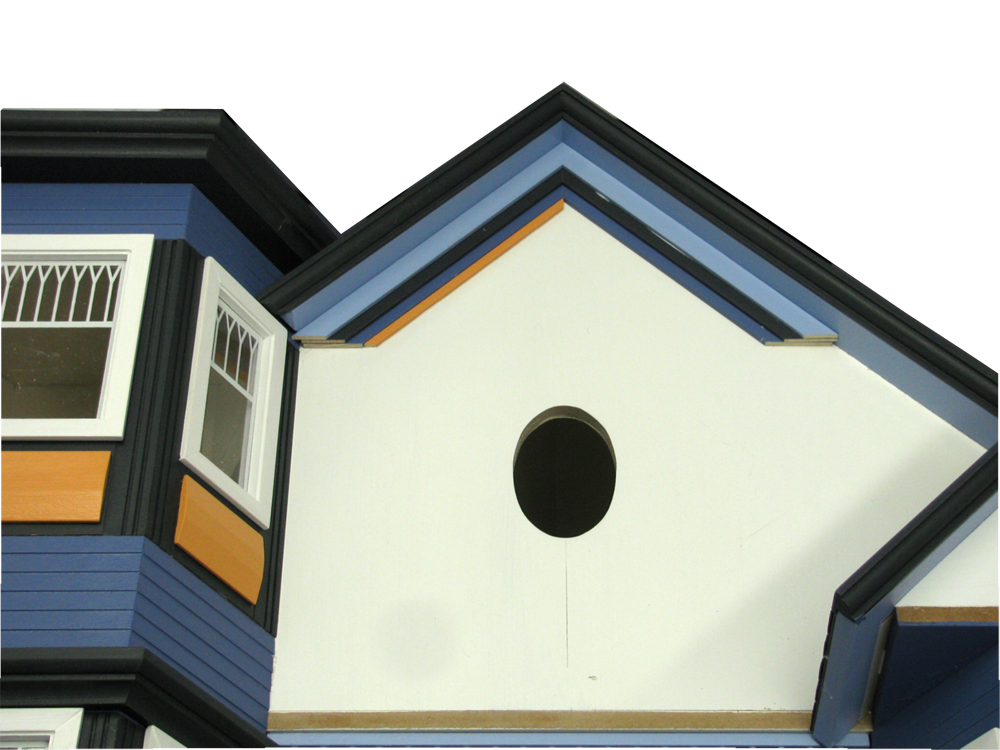

14. 3/16" Stripwood fits to the bottom edge of the 1" Stripwood 14D.png

DHTMLGoodies.com

15. Detail of the Stripwood layout - note: the 1/2" Stripwood isn't nipped on the left point 15D.png

DHTMLGoodies.com

16. 16D.png

DHTMLGoodies.com

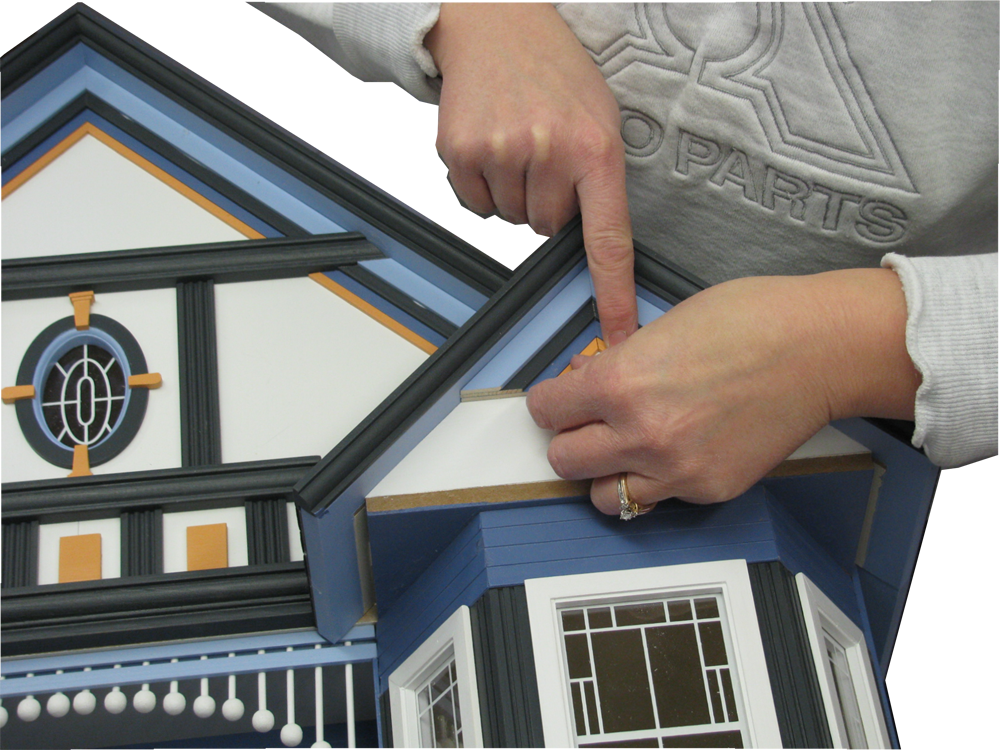

17. Now you can glue in the Attic Crosspiece 17D.png

DHTMLGoodies.com

18. The next layers - 1" first 18D.png

DHTMLGoodies.com

19. .. then 3/4" 19D.png

DHTMLGoodies.com

20. .. then half - all the same length on the outside 20D.png

DHTMLGoodies.com

21. 3/16 under the edge of the 1" as above 21D.png

DHTMLGoodies.com

22. 22D.png

DHTMLGoodies.com

23. Pilasters and Tabling 23D.png

DHTMLGoodies.com

24. Everything centered on the line 24D.png

DHTMLGoodies.com

25. Gable Pilasters used as spacers 25D.png

DHTMLGoodies.com

26. The Balcony Cornice 26D.png

DHTMLGoodies.com

27. Now the Gable 27D.png

DHTMLGoodies.com

28. 1" then 3/4" 28D.png

DHTMLGoodies.com

29. then 1/2" lined up on the outside edge, 29D.png

DHTMLGoodies.com

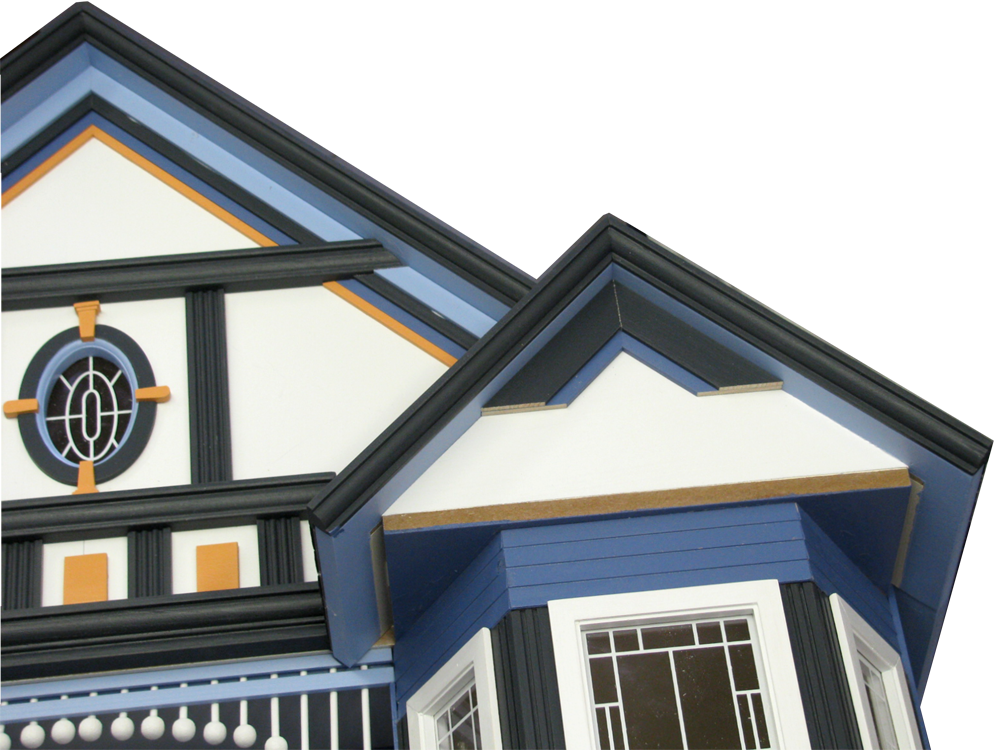

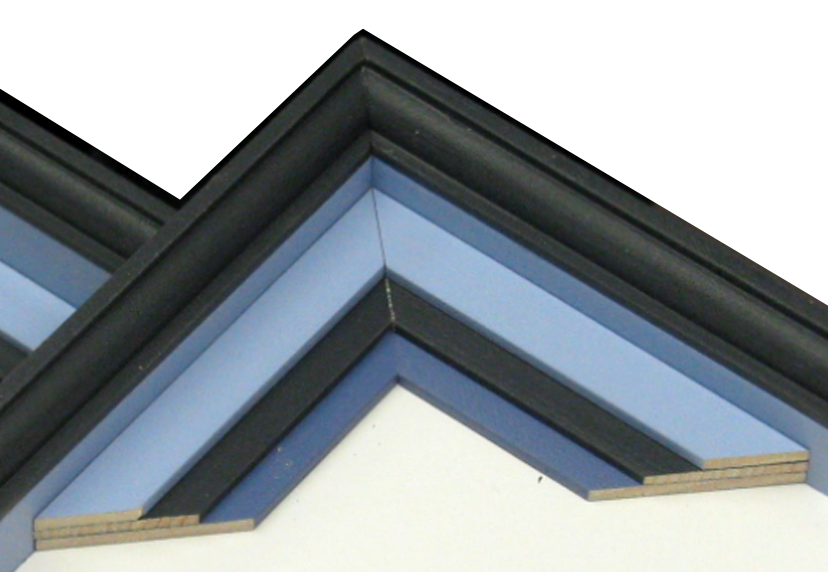

30. Detail of the layers 30D.png

DHTMLGoodies.com

31. - then 3/16" just as the Attic Front's Trim 31D.png

DHTMLGoodies.com

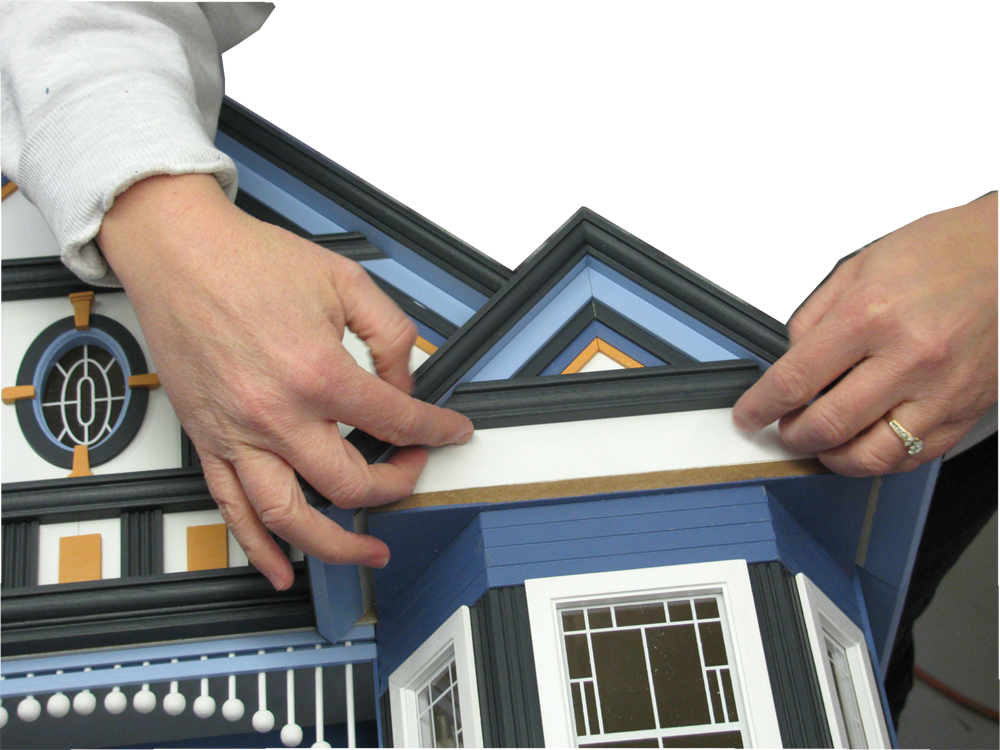

32. Gable Crosspiece 32D.png

DHTMLGoodies.com

33. Everything fits tight to the Gable Roof 33D.png

DHTMLGoodies.com

34. Gable Pilaster, centered 34D.png

DHTMLGoodies.com

35. Block Trim 35D.png

DHTMLGoodies.com

36. Spaced evenly 36D.png

DHTMLGoodies.com

37. 37D.png

DHTMLGoodies.com

38. Let the glue dry 38D.png
