DH77K Assembly - the Top Floor

Slideshows support but do not replace the instructions

Parts
PreAssembly
Floors, Foundations, and Roofs
Mark the Floors for painting
Paint
Assembly:
Housebody 1: First floor
Housebody 2: Second floor
Top Floor - mark and paint (here)
Tower and Roof
Exterior Frinishing
Index
    Corner Trim
    Windows
    Shingles and Dormers
    Rails Assemble  Install  Addendum
Interior Frinishing
Interiors Home
Interior Window Trim
Dividers
Stairs, Banister & Landing

DHTMLGoodies.com

Assemble the Tower using painted parts 00D.png

DHTMLGoodies.com

01. Glue a Tower Side to the Front (E3) - your parts are painted 01D.png

DHTMLGoodies.com

02. Clean up the glue squeezings - a Divider will hold the parts square 02D.png

DHTMLGoodies.com

03. Tape the Divider in place, let the glue dry, take off the tape 03D.png

DHTMLGoodies.com

04. Glue and tape on the other Tower Side 04D.png

DHTMLGoodies.com

05. 5 3/4 to the outside (the same as the Front) 05D.png

DHTMLGoodies.com

68: Roof Assembly: the Shingle Lines have been drawn 68D.png

DHTMLGoodies.com

06. Start a flap of tape on the bottom of the Front Roof 06D.png

DHTMLGoodies.com

07. The tape is stuck to the face of the roof and sticks out at an angle at the bottom 07D.png

DHTMLGoodies.com

08. Stand the Front Roof upright - the tape is ready for the Side roof 08D.png

DHTMLGoodies.com

09. Glue on the front edge (angled) of the Side Roof 09D.png

DHTMLGoodies.com

10. Set the Side Roof on the tape lined up in the corner 10D.png

DHTMLGoodies.com

11. Tape diagonally across the top 11D.png

DHTMLGoodies.com

12. The tape sticks the corner in position on top 12D.png

DHTMLGoodies.com

13. ... then pulls as you rub it down 13D.png

DHTMLGoodies.com

14. tighten and rub down the bottom tape 14D.png

DHTMLGoodies.com

15. Set a Rooftop on the inside to hold the roofs square as the glue dries 15D.png

DHTMLGoodies.com

16. Check the outside again - let the glue dry 16D.png

DHTMLGoodies.com

10. Repeat the process for the other Roof set 10D.png

DHTMLGoodies.com

17. Use the same diagonal taping method to glue together the Tower Roofs 17D.png

DHTMLGoodies.com

18. Then tape together Dividers to hold the roofs square as the glue dries 18D.png

DHTMLGoodies.com

19. Without glue, set the Tower on the Top Floor 19D.png

DHTMLGoodies.com

20. Lined up in back 20D.png

DHTMLGoodies.com

21. Squared with the Rooftops 21D.png

DHTMLGoodies.com

22. Lined up on the inside with the stair hole 22D.png

DHTMLGoodies.com

23. Lined up in front with the lower floors' Tower Fronts 23D.png

DHTMLGoodies.com

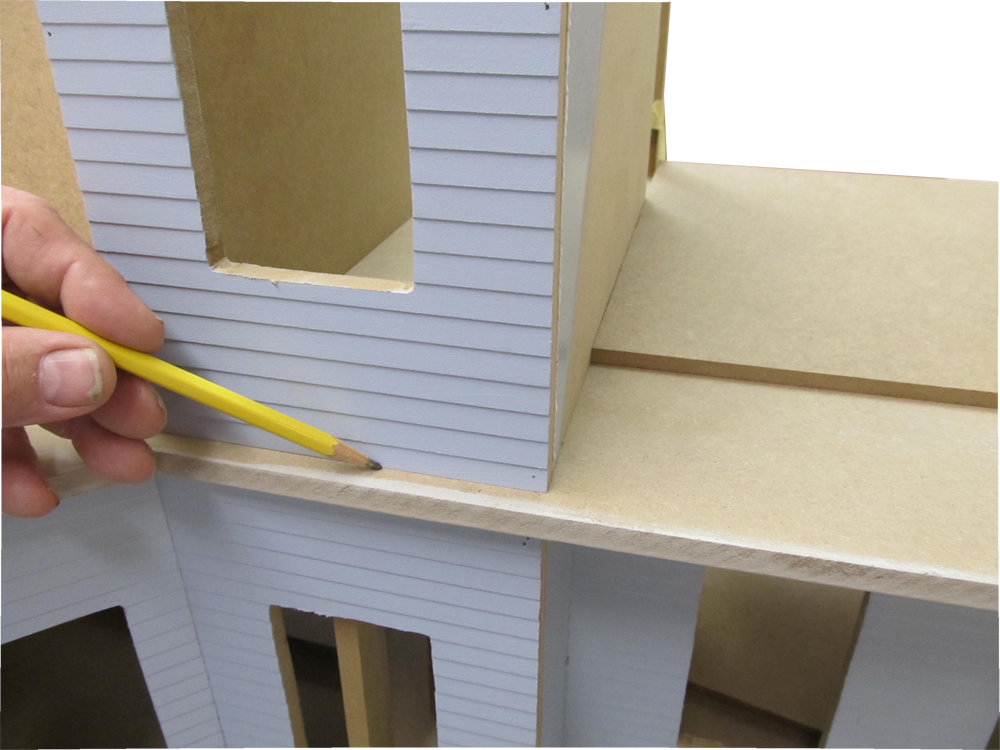

24. Trace the Tower Front on the Top Floor 24D.png

DHTMLGoodies.com

25. Tape the Tower Front so it won't move 25D.png

DHTMLGoodies.com

26. Without glue, set the Roofs in position 26D.png

DHTMLGoodies.com

27. Locate the Front Roof with the Attic Divider set 27D.png

DHTMLGoodies.com

28. Lined up in back and parallel with the floor's edge 28D.png

DHTMLGoodies.com

29. Tape it to keep it perfect 29D.png

DHTMLGoodies.com

30. Trace the Roof on the Top Floor 30D.png

DHTMLGoodies.com

31. Repeat for the other Roof 31D.png

DHTMLGoodies.com

32. Lined up in back, parallel with the edge, taped to keep it there 32D.png

DHTMLGoodies.com

33. Trace the edges of the Tower and the Roofs 33D.png

DHTMLGoodies.com

34. Move the Tower and Roofs out of the way 34D.png

DHTMLGoodies.com

35. Paint to just barely cover the line 35D.png

DHTMLGoodies.com

36. I like to lay the paint on with a foam brush... 36D.png

DHTMLGoodies.com

37. ... then level it with a foam roller 37D.png

DHTMLGoodies.com

38. Two coats, sanded after the first coat 38D.png

DHTMLGoodies.com

39. Now you're ready for glue 39D.png

DHTMLGoodies.com

00. Next slideshow: Attach the Tower and Roofs ../../Buttons/ClickHere.png
